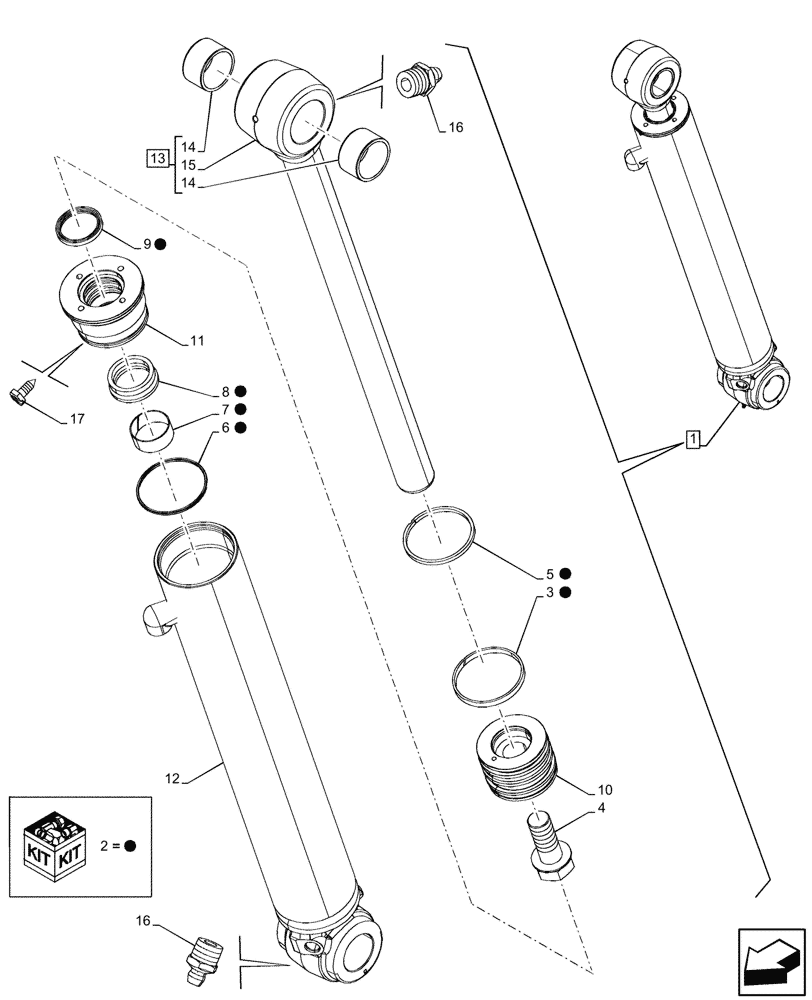

Запчасти Case 580N (35.737.020) - DIPPER, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47458137

HYDRAULIC CYLINDER,57.2mm Rod, 108mm Bore, 628.5mm Stroke

ASSY, Grey, Dipper, Incl 2 - 17

1шт.

2

84259221

SEAL KIT,57.2mm Rod x 108.0mm Bore

ASSY, Backhoe Dipper Cylinder, Incl 3, 5 - 9

1шт.

3

G110530

RING,108mm OD, Ext

1шт.

4

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1шт.

5

233104A1

RING,103.36mm ID, Ext

1шт.

6

87615483

SEAL,100.05mm ID x 108.33mm OD x 4.85mm Thk

Static Head

1шт.

7

1346476C1

RING,57.15mm ID, Int

1шт.

8

1542877C1

SEAL KIT,57.2mm Rod

Dipper Cylinder, Rod & Buffer

1шт.

9

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

10

84297603

PISTON ROD/GLAND

1шт.

11

84238804

GLAND

1шт.

12

84290399

BARREL,107.8mm Bore Dia

1шт.

13

84594312

ROD,57.2mm OD x 851.27mm L

ASSY, Incl 14, 15

1шт.

14

1346101C1

RING,60.19mm ID x 70mm OD x 39mm L

2шт.

15

NSS

NOT SOLD SEPARAT

Rod, Incl in 13

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

17

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
