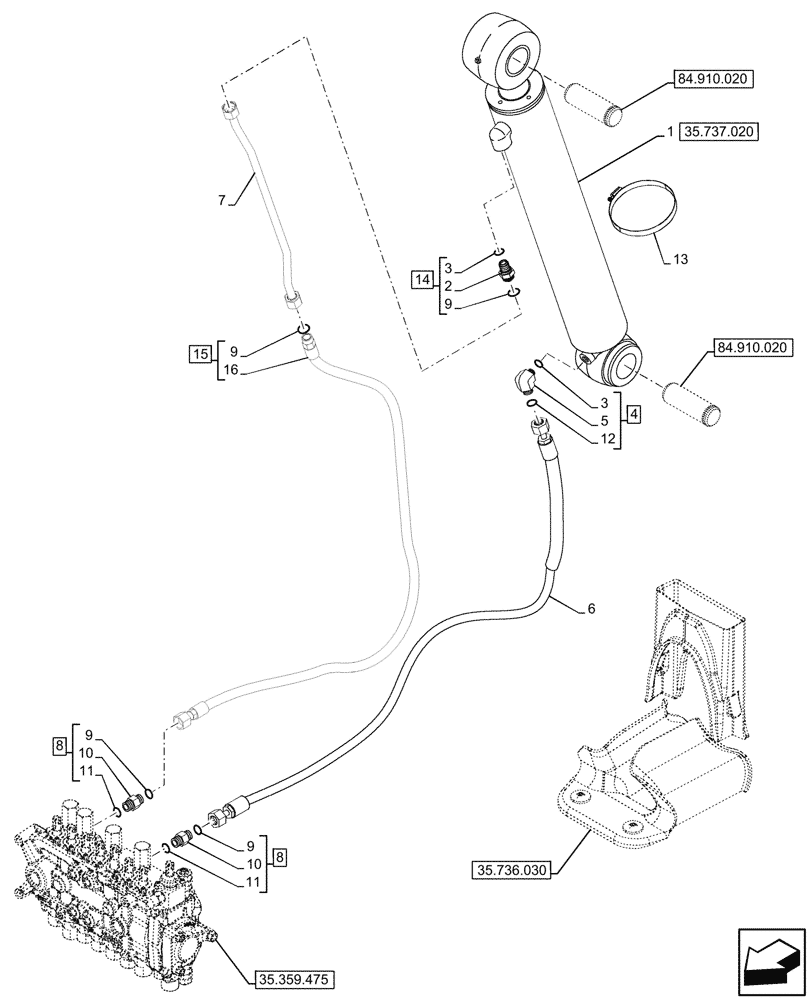

Запчасти Case 580N (35.737.010) - DIPPER, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

47458137

HYDRAULIC CYLINDER,57.2mm Rod, 108mm Bore, 628.5mm Stroke

ASSY, Grey, Dipper

1шт.

2

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.

3

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

4

87675522

90 ELBOW,90 Degree 1"-14 x 7/8"-14 Adj ORFS

ASSY, Incl 3 (Qty 1), 5, 12

1шт.

5

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 4

1шт.

6

84257621

HYDRAULIC HOSE,15.88mm ID x 2073mm L, SAE 100R16

Valve to Dipper Cylinder Head

1шт.

7

48046094

HYD TUBE

Valve to Dipper Cylinder Rod

1шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 9 (Qty 2), 10, 11

2шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

2шт.

14

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

ASSY, Incl 2, 3 (Qty 1), 9 (Qty 1)

1шт.

15

48046091

HYDRAULIC HOSE

ASSY, Valve to Dipper Cylinder Rod, Incl 9 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Hose, Incl in 15

1шт.
