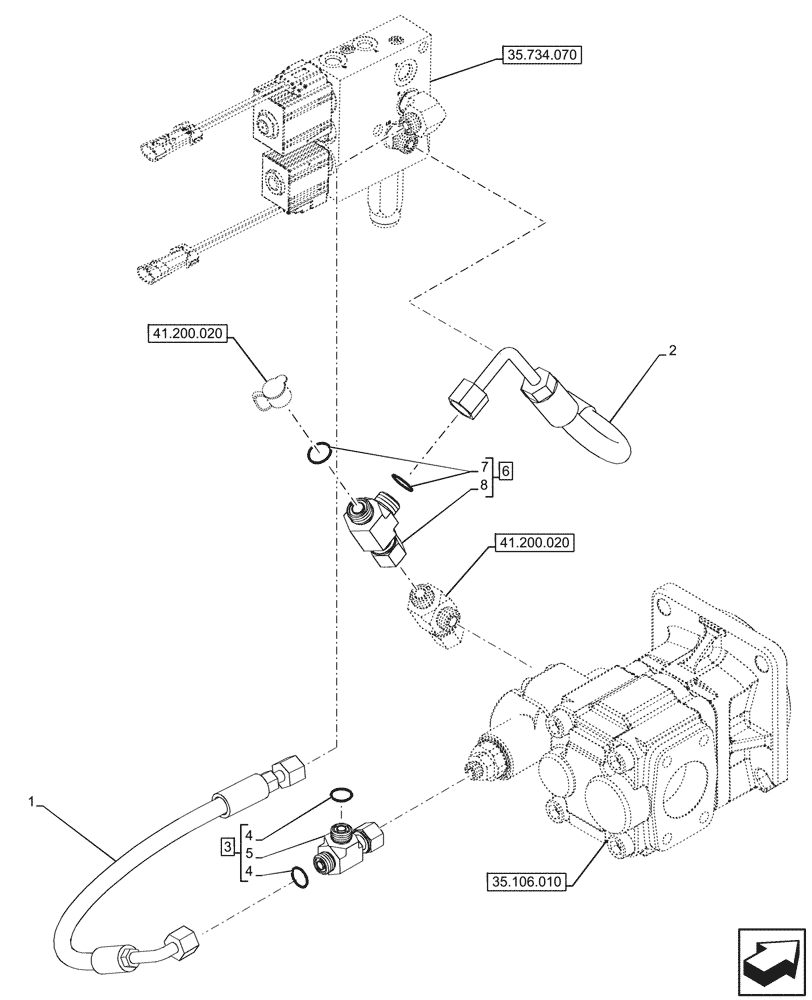

Запчасти Case 580N (35.734.100) - VAR - 423049 - QUICK COUPLER, VALVE, OIL PUMP, HYDR LINES (35) - HYDRAULIC SYSTEMS

1

47865749

HYDRAULIC HOSE,6.3mm ID x 515mm L, SAE 100R16

Pump to Coupler

1шт.

2

47865746

HYDRAULIC HOSE,10mm ID x 340mm L, SAE 100R16

Pump to Coupler

1шт.

3

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 4, 5

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

6

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 7, 8

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.
