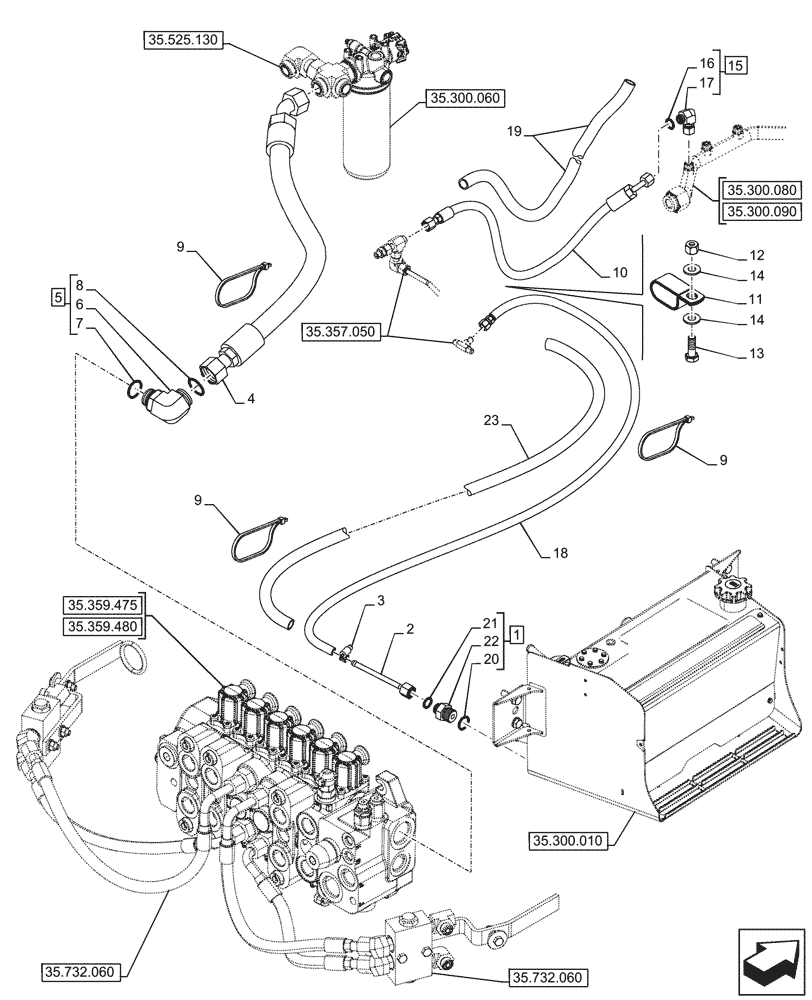

Запчасти Case 580N (35.732.070) - STABILIZER, CONTROLS, PILOT CONTROLS, LINE (35) - HYDRAULIC SYSTEMS

1

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 20 - 22

1шт.

2

84325520

TUBE

Return

1шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

4

84534427

HOSE ASSY.,25mm ID x 1010mm L

Backhoe to Filter

1шт.

5

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

ASSY, Incl 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 5

1шт.

7

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

5шт.

10

84514724

HOSE ASSY.,10mm ID x 870mm L

Return to Manifold

1шт.

11

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

15

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 15

1шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

84325529

HOSE,10mm ID, 1899mm L, SAE100R6

Pilot Hydraulic Return, Gear Pump

1шт.

19

84249061

HOSE PROTECTION,19mm ID x 820mm L

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

23

84325932

HOSE PROTECTION

1шт.
