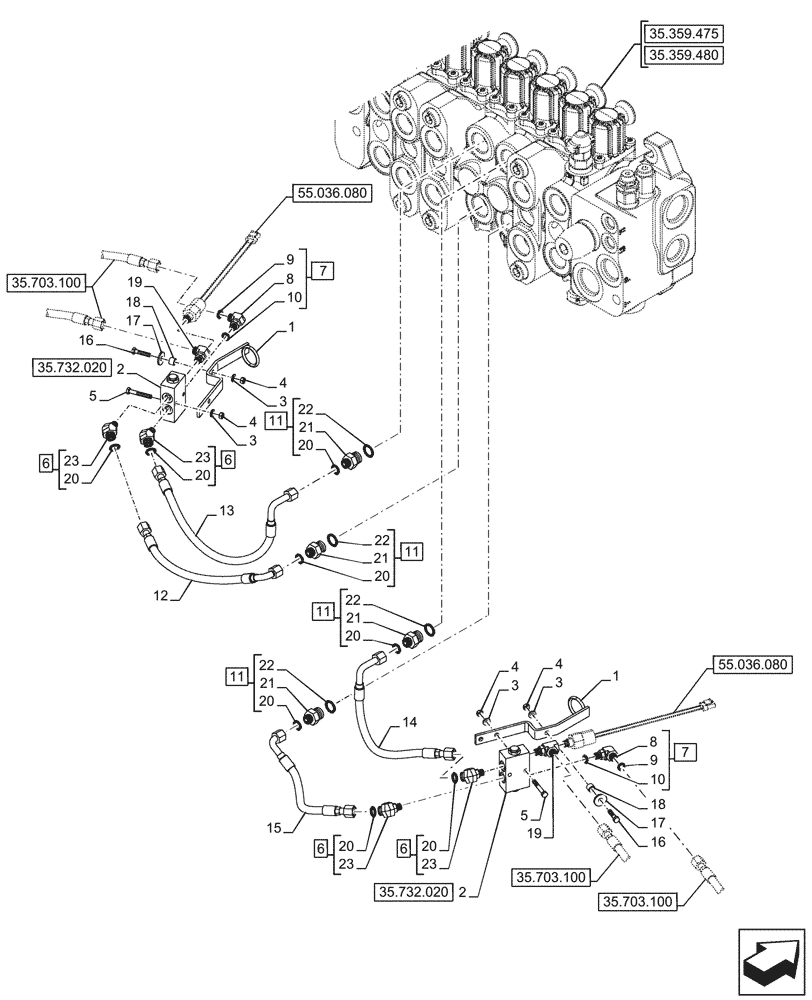

Запчасти Case 580N (35.732.060) - STABILIZER, CONTROLS, PILOT CONTROLS, LINE (35) - HYDRAULIC SYSTEMS

1

87450318

BRACKET

Check Valve Mounting, Power Tan

2шт.

2

85802820

CHECK VALVE

ASSY, Stabilizer, Load

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

5

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

4шт.

6

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 20 (Qty 4), 23

4шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 7

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

11

87582906

HYD CONNECTOR,13/16" - 16 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 20 (Qty 4), 21, 22

4шт.

12

84256421

HYD TUBE,10mm ID x 410mm L

10mm ID x 410mm L, Stabilizer Check to Backhoe Valve

1шт.

13

84256420

HYD TUBE,10mm ID x 529mm L

10mm ID x 529mm L, Stabilizer Check to Backhoe Valve

1шт.

14

84256418

HYD TUBE,10mm ID x 455mm L

10mm ID x 455mm L, Stabilizer Check to Backhoe Valve

1шт.

15

84256419

HYD TUBE,10mm ID x 355mm L

10mm ID x 355mm L, Stabilizer Check to Backhoe Valve

1шт.

16

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

17

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

2шт.

18

87437840

SPACER,11.5mm L

11.5mm L

2шт.

19

84253759

RUN TEE

2шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

4шт.

22

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

23

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 6

4шт.
