(35.726.170) - 6-SPOOL, 7-SPOOL, JOYSTICK MOUNTING, RH, STANDARD DIPPER, W/ PILOT CONTROLS

Запчасти Case 580N (35.726.170) - 6-SPOOL, 7-SPOOL, JOYSTICK MOUNTING, RH, STANDARD DIPPER, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS

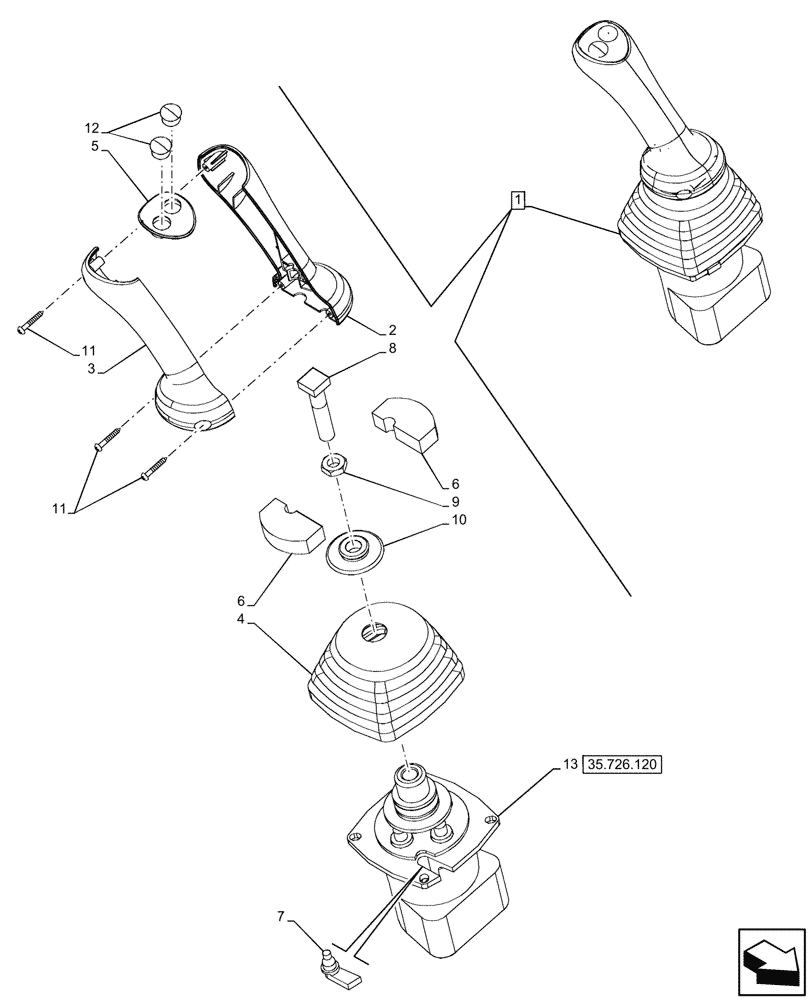

Схема запчастей Case 580N - (35.726.170) - 6-SPOOL, 7-SPOOL, JOYSTICK MOUNTING, RH, STANDARD DIPPER, W/ PILOT CONTROLS (35) - HYDRAULIC SYSTEMS
35.726.120
13
6
7
2
6
10
11
4
3
9
11
5
1
8
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87685954

JOYSTICK

ASSY, RH, Incl 2 - 13

1шт.

2

87308839

HANDLE GRIP

1шт.

3

87308838

HANDLE GRIP

1шт.

4

87443722

BOOT

1шт.

5

87435242

BEZEL

1шт.

6

87435506

SEAL,52mmL

2шт.

7

87451448

GROMMET

1шт.

8

87428023

BOLT,Square Head, M12 x 1.75 x 60

1шт.

9

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

10

87436225

RETAINER,12.5mm ID, 46mm OD

1шт.

11

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

12

86625128

PLUG,Dome, .562" hole, Nylon

2шт.

13

87687141

PILOT VALVE

ASSY

1шт.
