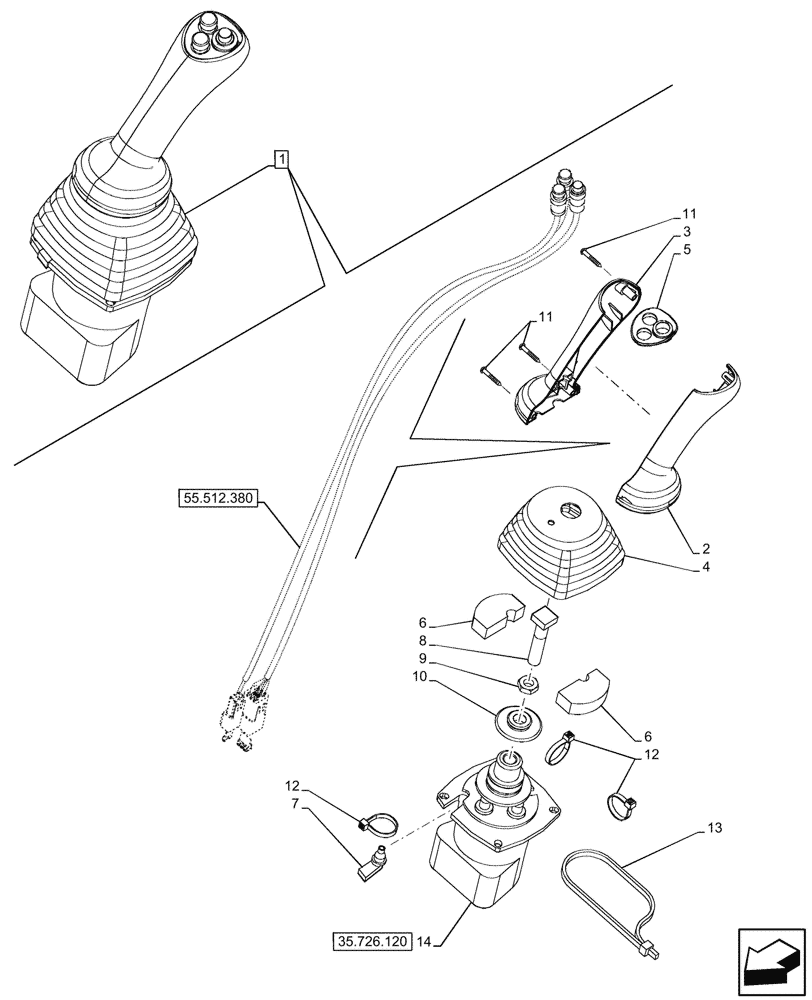

Запчасти Case 580N (35.726.140) - 7-SPOOL, 8-SPOOL, JOYSTICK, LH, W/ PILOT CONTROLS, W/ DOUBLE AUXILIARY HYDRAULIC, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87685952

JOYSTICK

ASSY, LH, Incl 2 - 14

1шт.

See also Joystick Components in Figure 55.512.380

1шт.

2

87308839

HANDLE GRIP

1шт.

3

87308838

HANDLE GRIP

1шт.

4

87443721

BOOT

1шт.

5

87435243

BEZEL

1шт.

6

87435506

SEAL,52mmL

2шт.

7

87424267

GROMMET

1шт.

8

87428023

BOLT,Square Head, M12 x 1.75 x 60

1шт.

9

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

10

87436225

RETAINER,12.5mm ID, 46mm OD

1шт.

11

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

3шт.

12

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

3шт.

13

87438046

CABLE TIE,375.9 mm L x 8mm W

1шт.

14

87687141

PILOT VALVE

ASSY

1шт.
