(35.723.030) - BUCKET CYLINDER, LINE

Запчасти Case 580N (35.723.030) - BUCKET CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

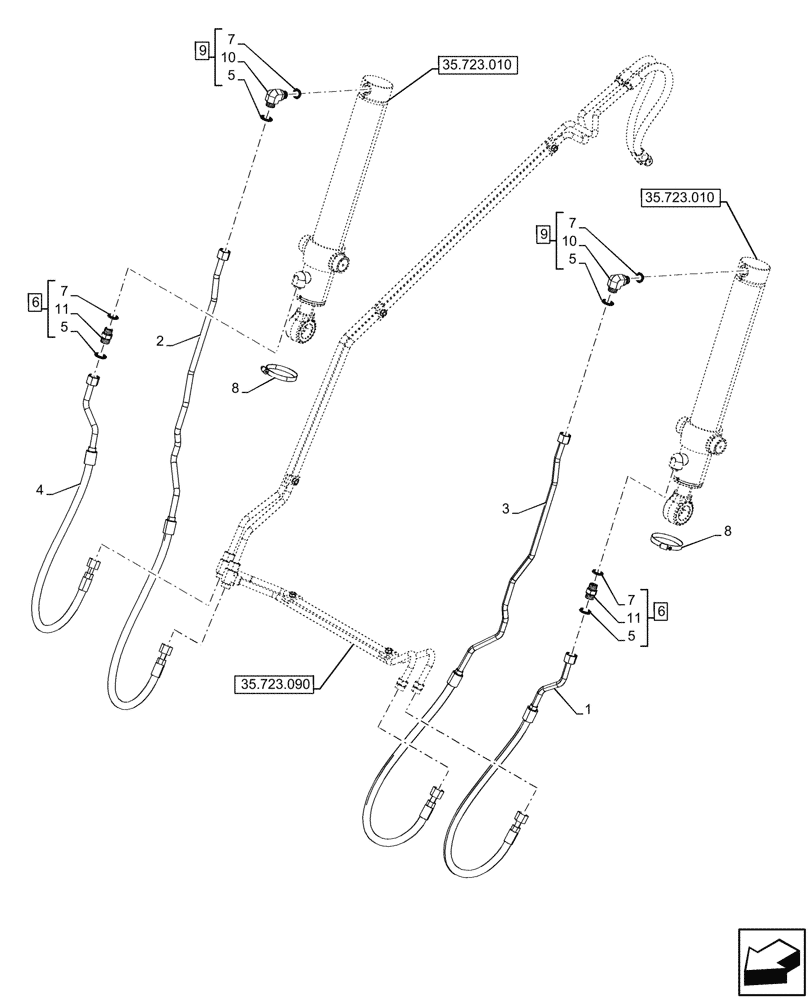

Схема запчастей Case 580N - (35.723.030) - BUCKET CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
35.723.010
9
3
11
2
5
9
4
10
1
6
7
11
5
7
5
5
6
7
10
8
8
7
35.723.090
35.723.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84307497

HYD TUBE

ASSY, RH, Dump Lower

1шт.

2

84307626

HYD TUBE

RH, Dump Port A

1шт.

3

84307629

HYD TUBE

LH, Dump Port A

1шт.

4

84307492

HYD TUBE

ASSY, RH, Dump Lower

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

6

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 5 (Qty 2), 7 (Qty 2), 11

2шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

8

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

2шт.

9

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSY, Incl 5 (Qty 2), 7 (Qty 2), 10

2шт.

10

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 9

2шт.

11

NSS

NOT SOLD SEPARAT

90 Elbow, Incl in 6

2шт.
