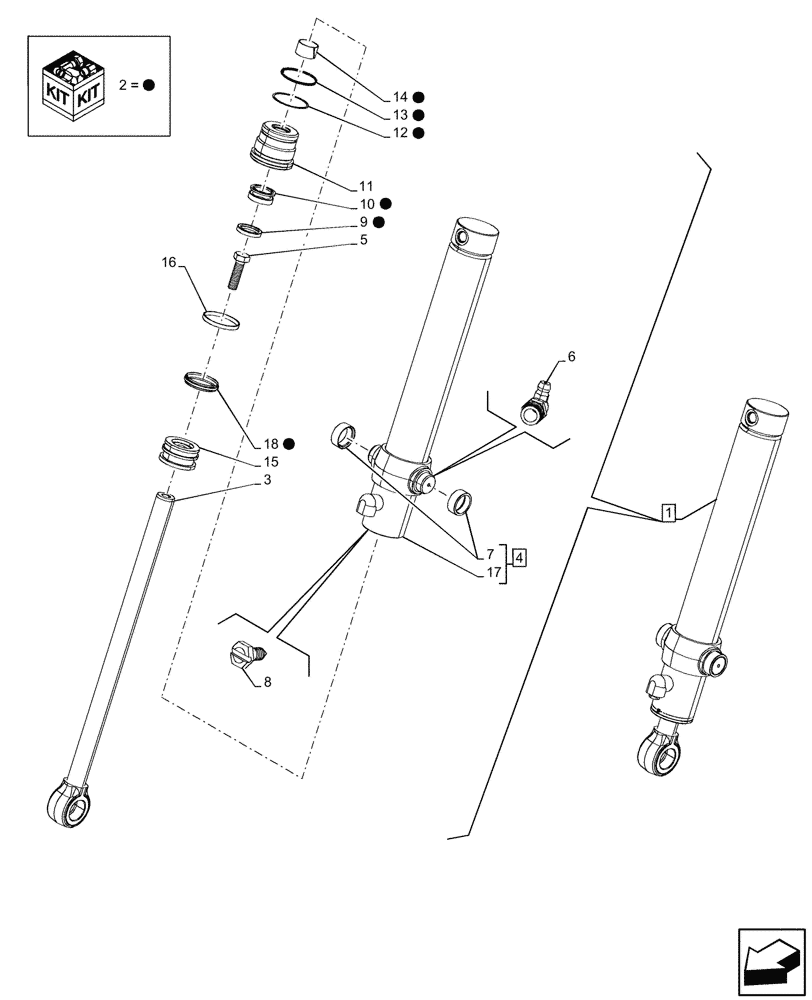

Запчасти Case 580N (35.723.020) - LOADER BUCKET, CONTROLS, CYLINDER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84421600

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 516.5mm Stroke

ASSY, Grey, Incl 2 - 18

1шт.

2

84257788

SEAL KIT,38.1mm Rod x 76.2mm Bore

ASSY, Loader Arm Cylinder, Incl 9, 10, 12 - 14, 16, 18

1шт.

3

84237943

ROD,38.1mm OD

Chrome

1шт.

4

84238609

TUBE

ASSY, Incl 7, 17

1шт.

5

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

7

G108512

BUSHING,41.2mm ID x 50mm OD x 18.7mm L

2шт.

8

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

9

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

10

1542874C1

SEAL KIT,38.1mm Rod

Bucket Cylinder, Rod & Buffer

1шт.

11

84237948

GLAND

1шт.

12

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

13

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

14

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

15

84237953

PISTON ROD/GLAND,75.57mm Bore, 38.21mm Rod, 41.95mm W

1шт.

16

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

17

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

18

87715781

SEAL,63.78mm ID x 76.2mm OD

Piston

1шт.
