(35.701.430) - LOADER, CONTROL VALVE, 2-SPOOL, LINES

Запчасти Case 580N (35.701.430) - LOADER, CONTROL VALVE, 2-SPOOL, LINES (35) - HYDRAULIC SYSTEMS

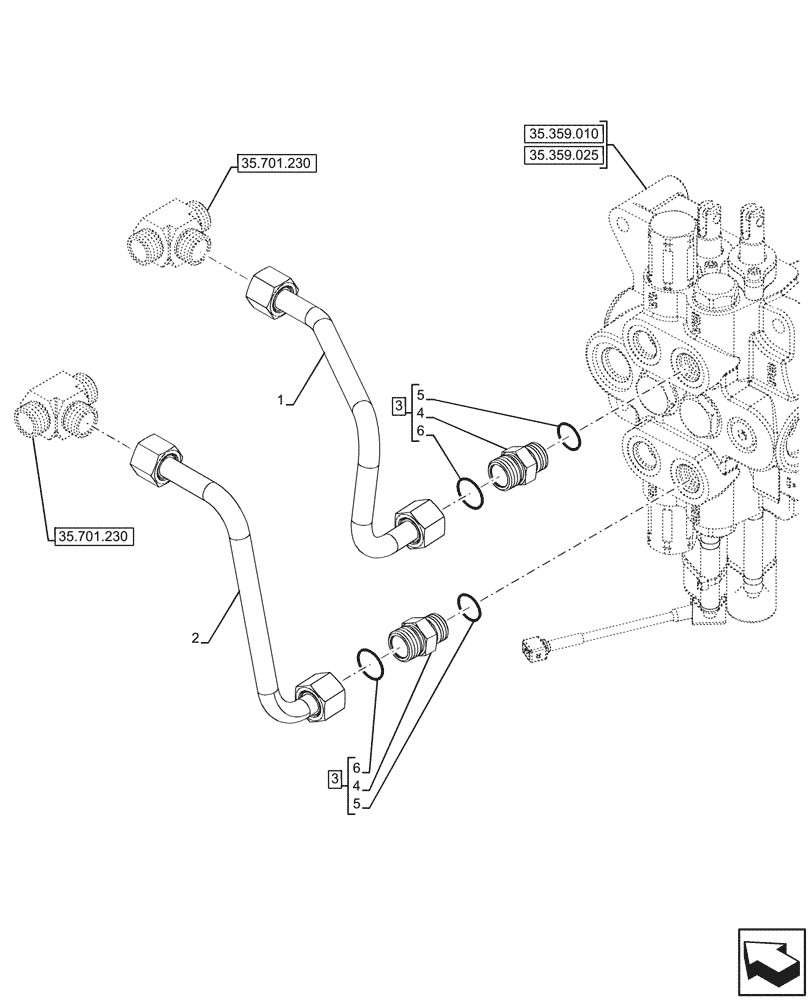

Схема запчастей Case 580N - (35.701.430) - LOADER, CONTROL VALVE, 2-SPOOL, LINES (35) - HYDRAULIC SYSTEMS
35.701.230
6
4
3
2
5
4
3
1
5
6
35.359.010
35.359.025
35.701.230
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84293154

TUBE

Loader Lift Port A to W/O Ride Control Line

1шт.

2

84294693

HOSE ASSY.

Loader Lift Port B to W/O Ride Control Line

1шт.

3

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

5

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

6

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

Выбрано товаров: 6
