Запчасти Case 580N (35.701.390) - VAR - 747776, 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

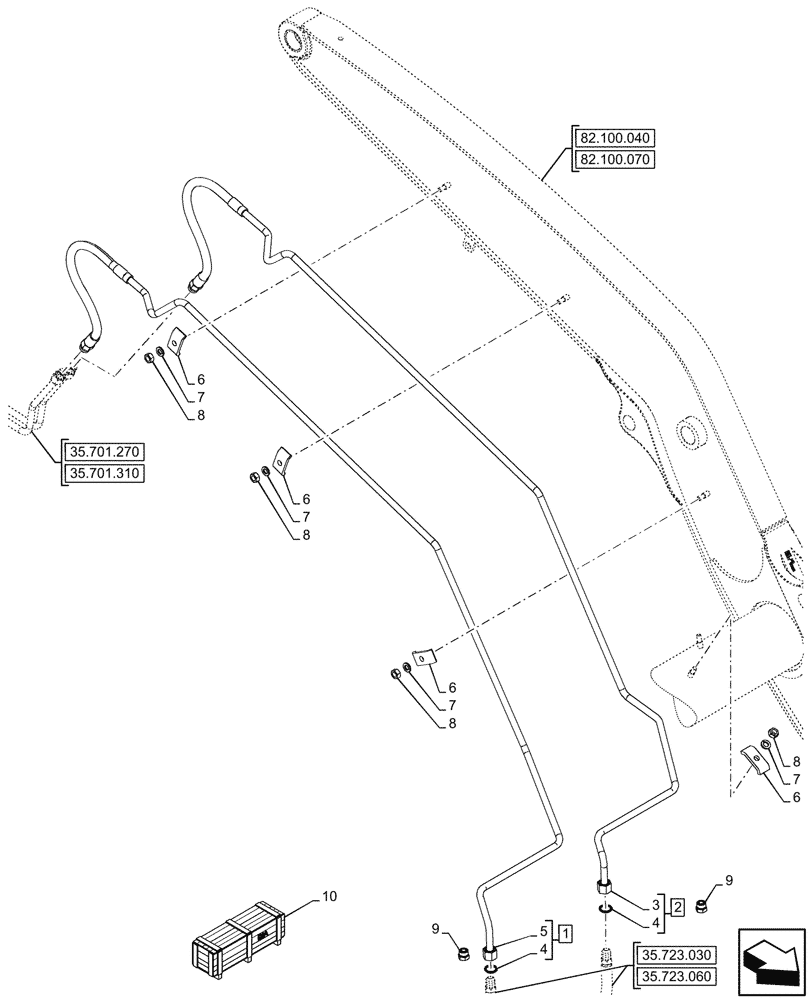

Схема запчастей Case 580N - (35.701.390) - VAR - 747776, 747864 - LOADER BUCKET, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS
35.701.270
7
6
7
10
6
8
6
9
1
8
4
7
8
4
2
5
9
6
8
7
3
35.701.310
82.100.070
82.100.040
35.723.030
35.723.060

Артикул

Название

Примечание

Количество

1

84282570

HYD TUBE

ASSY, Loader Arm Bucket, Auxiliary Line, Port B, Incl 4 (Qty 1), 5

1шт.

2

84282567

HYD TUBE

ASSY, Loader Arm Bucket, Auxiliary Line, Port A, Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Tube, Incl in 2

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

6

D138055

CLAMP

4шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

8

86500689

NUT,M10 x 1.5, Cl 10

4шт.

9

9847692

PLUG,M14 x 1 x 26mm L

1шт.

Valid only for Commercial Var. 742242

1шт.

10

47661818

CONSTRUCTION DIA

3 Spool Valve, Incl 1 - 9

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47788201

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 9

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 9

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 9

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 9

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 9

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Standard Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 9

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 9

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 34
