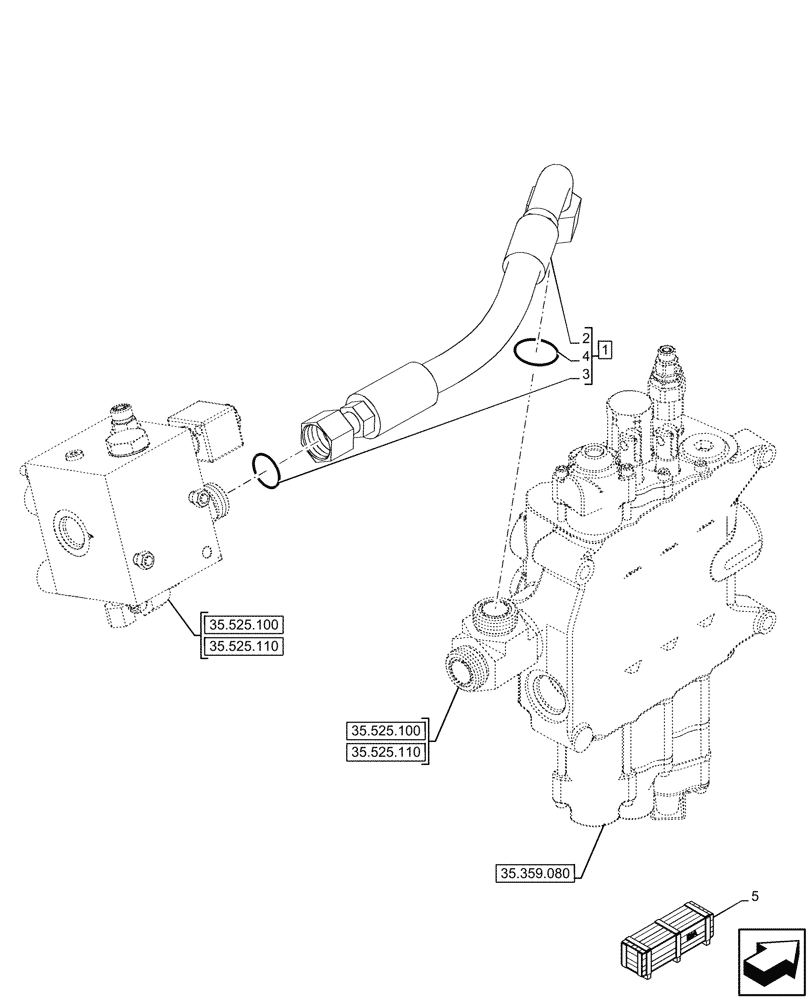

Запчасти Case 580N (35.525.250) - 3-SPOOL, VALVE, PILOT CONTROLS, AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

84275042

HOSE ASSY.,19mm ID x 411mm L

Uni Valve to Loader Valve 3 Spool, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

5

47501545

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

84544875

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
