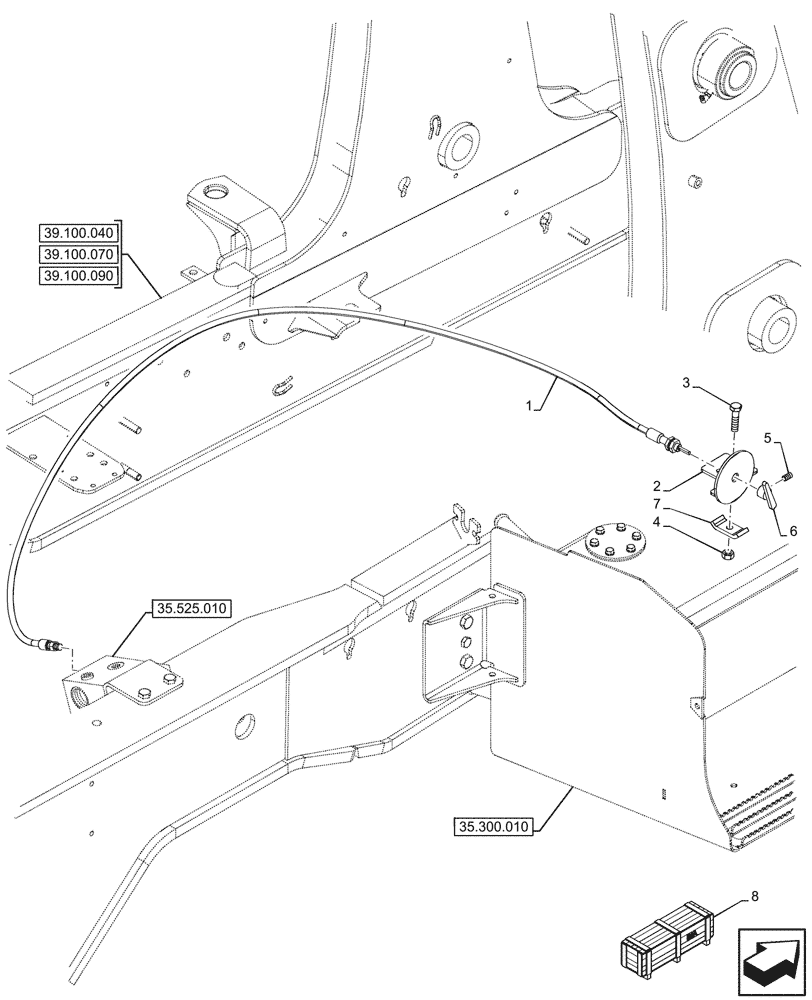

Запчасти Case 580N (35.525.050) - VAR - 423083, 423084, 747661, 747662 - AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

84377870

CABLE,1630mm L

Hammer Valve Adjustment

1шт.

2

84391738

BRACKET

Valve Cable

1шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

4

412141

NUT,M10 x 1.5, Cl 8

2шт.

5

47468161

SET SCREW,Hex Soc, M5 x 8mm, Cl 9.9

1шт.

6

84367646

KNOB

Black, Cable

1шт.

7

D138055

CLAMP

2шт.

8

47357827

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47358915

CONSTRUCTION DIA

Uni-Directional, Standard Dipper, Pilot Control, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47359725

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47359953

CONSTRUCTION DIA

Uni-Directional, Extendable Dipper, Pilot Control, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47501543

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 7

1шт.

Valid for 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47501544

CONSTRUCTION DIA

No Auxiliary to Combo, Standard Dipper, Pilot Control, Incl 1 - 7

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 7

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47662021

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1 - 4, 6, 7

1шт.

Valid for 580SN (Livery), 580SN WT (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 7

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 7

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

84544872

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 7

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

84544875

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 7

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 7

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 7

1шт.

Valid for 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

84546990

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 7

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 7

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 7

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47945927

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 7

1шт.

Valid for 590SN (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
