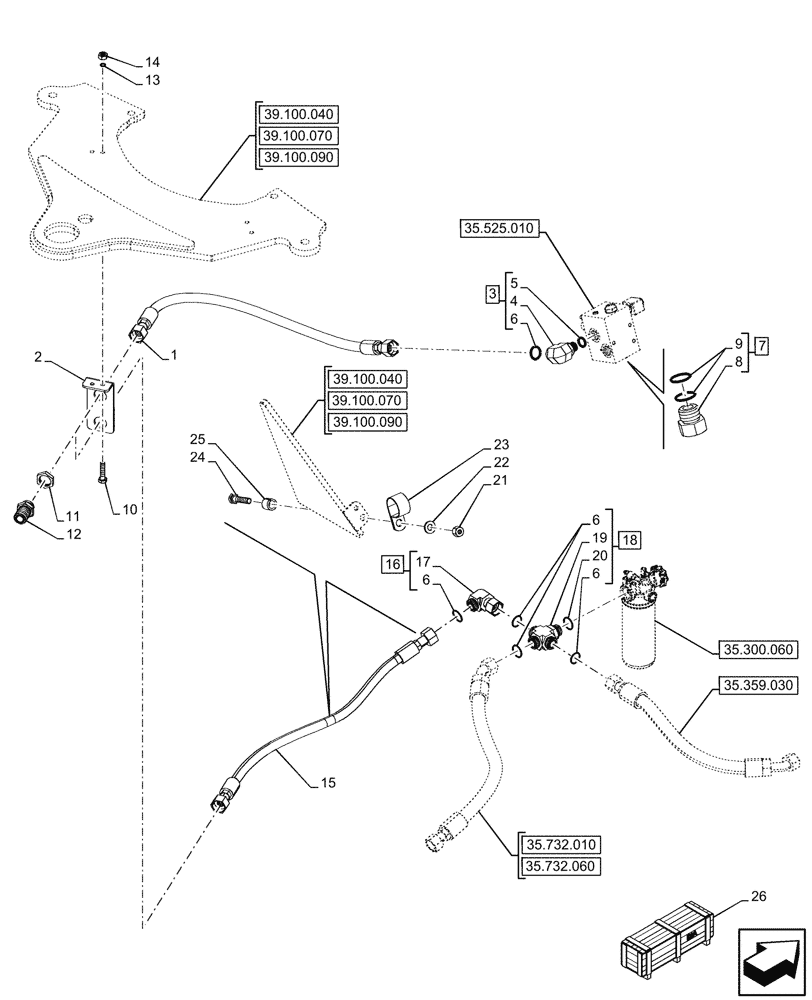

Запчасти Case 580N (35.525.030) - VAR - 747661 - AUXILIARY HYDRAULIC, LINE (35) - HYDRAULIC SYSTEMS

1

84407246

HYD TUBE,19mm ID x 970mm L

Uni-Auxiliary

1шт.

2

84407250

BRACKET, SUPPORTING

Uni-Auxiliary Mounting

1шт.

3

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

ASSY, Incl 4, 5, 6 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

1шт.

5

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

7

76349

PLUG,9/16" - 18 ORB

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

11

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

2шт.

12

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

ASSY

2шт.

13

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

14

86500689

NUT,M10 x 1.5, Cl 10

2шт.

15

48043962

HYDRAULIC HOSE,19mm ID x 953mm L

Uni-Auxiliary Return

1шт.

16

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

ASSY, Incl 6 (Qty 3), 17

1шт.

17

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 16

1шт.

18

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

ASSY, Incl 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Cross, Incl in 18

1шт.

20

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

22

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

23

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

24

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

25

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

26

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 25

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 25

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

84546990

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 25

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

26

84546992

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 25

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
