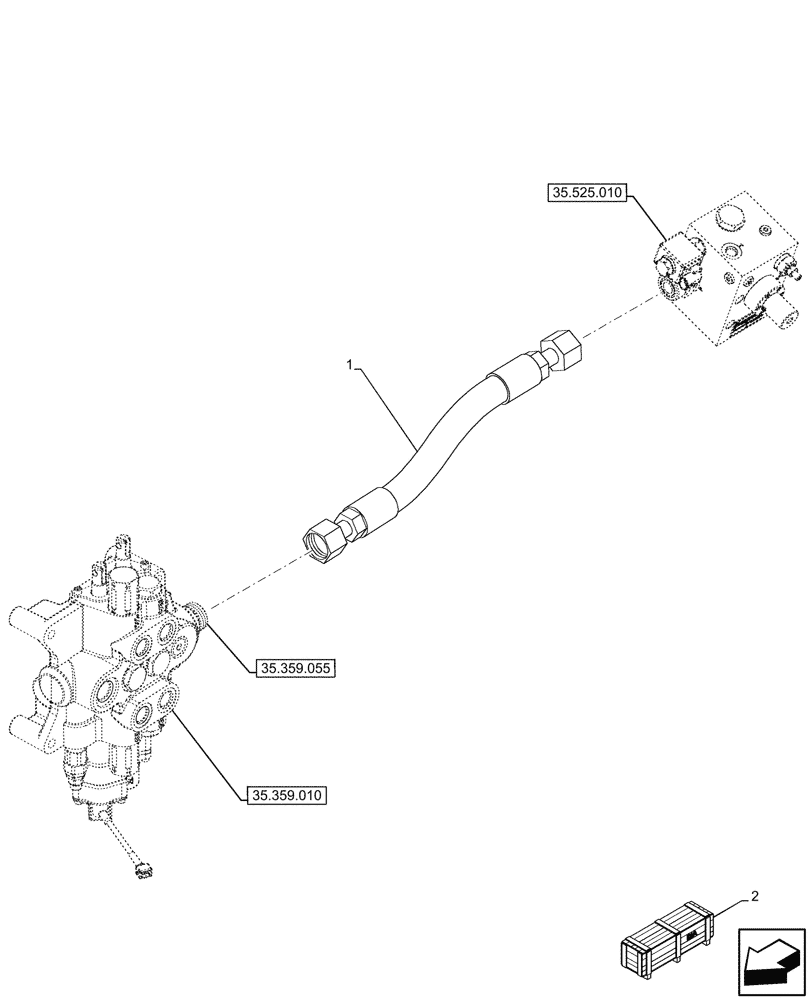

Запчасти Case 580N (35.359.460) - LOADER, VALVE, HAMMER, LINE, W/ 2 SPOOL (35) - HYDRAULIC SYSTEMS

1

84283269

HOSE ASSY.,19mm ID x 461mm L

Loader Valve to Hammer Valve

1шт.

2

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47945925

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84546986

CONSTRUCTION DIA

Uni-Directional, Incl 1

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84546989

CONSTRUCTION DIA

Uni-Directional, Incl 1

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
