Запчасти Case 580N (35.359.375) - AUXILIARY CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

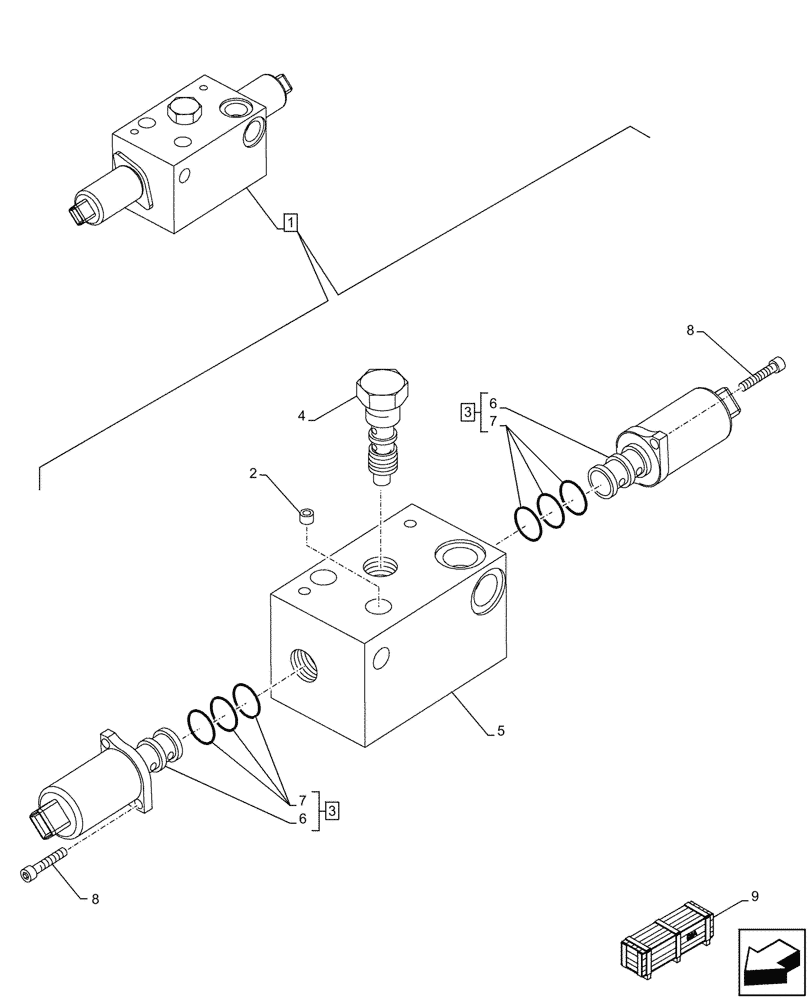

Схема запчастей Case 580N - (35.359.375) - AUXILIARY CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
4
6
1
7
2
8
9
3
3
7
6
5
8

Артикул

Название

Примечание

Количество

1

47765053

CONTROL VALVE

ASSY, Clam Bucket, Incl 2 - 5, 8

1шт.

2

87311363

ORIFICE,1.8mm ID

1шт.

3

85827993

SOLENOID VALVE

ASSY, Pressure Control, Incl 6, 7

2шт.

4

47761897

VALVE, PRESSURE CONT

Pressure Reducing, Clam Valve

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Solenoid Valve, Incl in 3

2шт.

7

85828000

SEAL KIT

Pilot Controls, Pressure Control Valve

2шт.

8

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

2шт.

9

47661818

CONSTRUCTION DIA

3 Spool Valve, Incl 1 - 8

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47788201

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Standard Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955736

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580SN (Livery) NRC, 580SN WT (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 32
