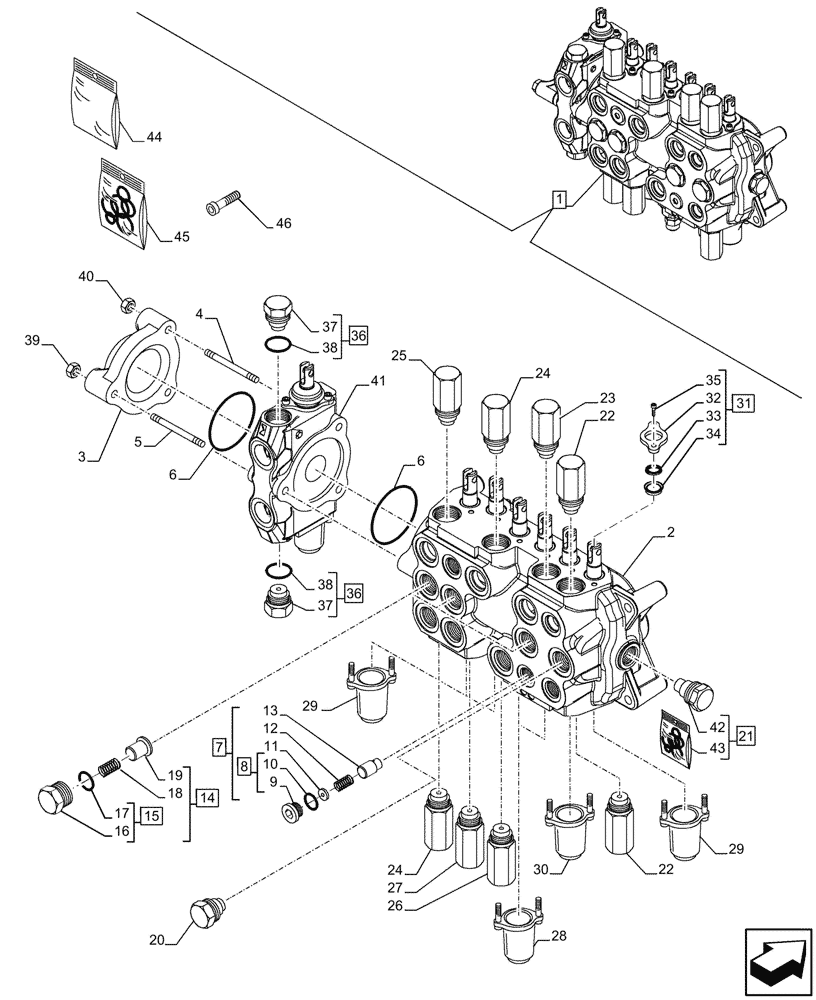

Запчасти Case 580N (35.359.305) - 7-SPOOL, BACKHOE CONTROL VALVE, EXTENDABLE DIPPER, HAND SWING, BRAZIL, W/ 2 LEVER CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47579594

VALVE

ASSY, Backhoe, 7 Spool, Extendable Hoe, Hand Swing, Incl 2 - 46

1шт.

2

NSS

NOT SOLD SEPARAT

Block, Incl in 1

1шт.

3

87433030

OUTLET

Outlet

1шт.

4

47538074

TIE-ROD

2шт.

5

47538075

TIE-ROD

1шт.

6

87428495

O-RING,3.50" ID x 3.76" OD x .139" thk

2шт.

7

87428486

VALVE, CHECK

ASSY, Incl 8 - 13

3шт.

8

87455593

PLUG,7/8" - 14 ORB

ASSY, Incl 9, 10

3шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

3шт.

10

87455974

O-RING,0.097" Thk x 0.755" ID

3шт.

11

87455594

WASHER

Plastic

3шт.

12

87455595

SPRING

3шт.

13

87455596

PISTON

Poppet, Low Leak

3шт.

14

87426238

VALVE, CHECK

ASSY, Incl 15 - 19

3шт.

15

87455581

PLUG,Hex, 1/16" - 12 ORB

ASSY, Incl 16, 17

3шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 15

3шт.

17

87455975

O-RING

3шт.

18

87455582

SPRING

3шт.

19

87455583

VALVE POPPET

Load Check

3шт.

20

47538073

CHECK VALVE

1шт.

21

81868381

CHECK VALVE,1-1/16" - 12

ASSY, Anti Void, Incl 42, 43

1шт.

22

47520547

VALVE PRESSURE RELIE,205 Bar

Swing 207 Bar

2шт.

23

47537935

VALVE PRESSURE RELIE,221 Bar

1шт.

24

47520548

VALVE PRESSURE RELIE

283 Bar

2шт.

25

47520553

VALVE PRESSURE RELIE

Bucket A Port

1шт.

26

47520550

VALVE PRESSURE RELIE

Boom B Port

1шт.

27

47520549

VALVE PRESSURE RELIE

Dipper B Port

1шт.

28

84296826

SERVICE KIT

Mechanical Stabilizer End Group B Port

2шт.

29

84296859

KIT

Mechanical Backhoe Valve B Port End G

4шт.

30

84296862

KIT

Mech Boom B Port End Group

1шт.

31

87541939

GASKET KIT

ASSY, Incl 32 - 35

6шт.

32

87455536

RETAINING PLATE

6шт.

33

71103058

O-RING

6шт.

34

85999136

SEAL,17.6mm ID x 26.84mm OD x 5.42mm Thk

6шт.

35

87455540

HEX SOC SCREW

12шт.

36

83981068

STOP PLUG,Hex, 1/16 - 12 UN

ASSY, Incl 37, 38

2шт.

37

NSS

NOT SOLD SEPARAT

Plug, Incl in 36

2шт.

38

87308628

PLASTIC RING

Special

2шт.

39

47520611

NUT

1шт.

40

47520609

NUT

2шт.

41

NSS

NOT SOLD SEPARAT

Spool Section, Incl in 1

1шт.

42

NSS

NOT SOLD SEPARAT

Anti Void Valve, Incl in 21

1шт.

43

87455580

O-RING KIT

Backhoe Control Valve, Anti-Void Check Valve

1шт.

44

84276557

SERVICE KIT

ASSY, Bolt on Extendable Dipper, Mechanical Control

1шт.

45

47556611

SEAL KIT

Mechanical Backhoe Valve Seal

1шт.

46

87428491

SCREW,Hex

2шт.
