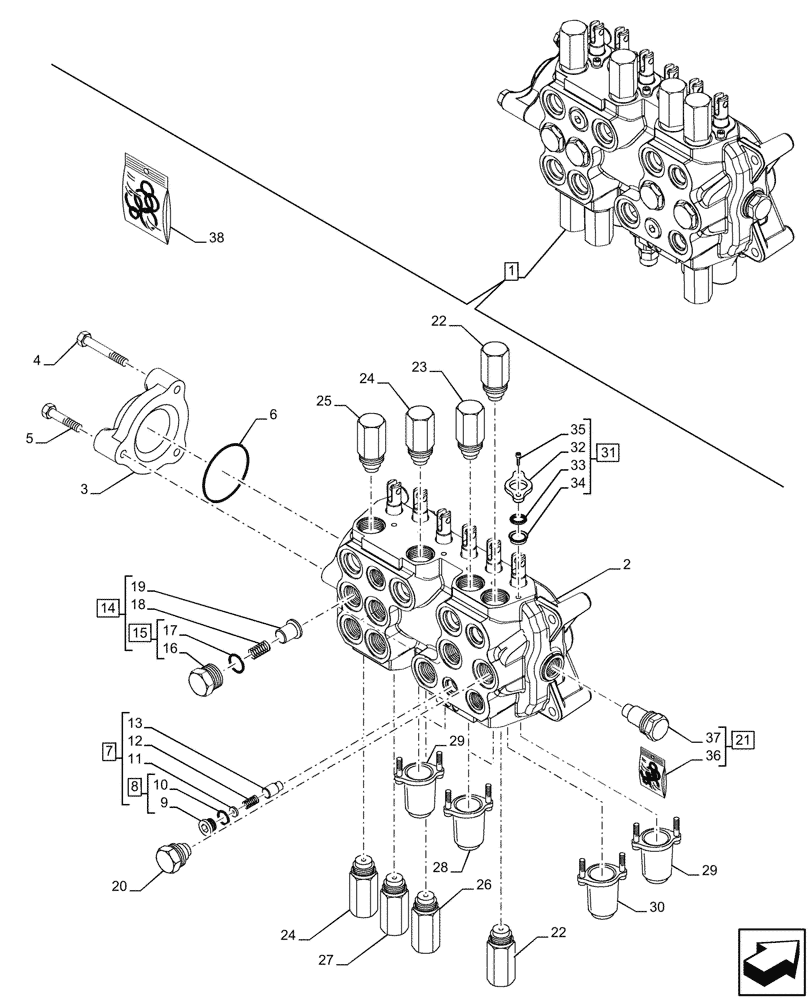

Запчасти Case 580N (35.359.295) - 6-SPOOL, BACKHOE CONTROL VALVE, STANDARD DIPPER, FOOT SWING, BRAZIL, W/ 2 LEVER CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47579593
VALVE
ASSY, Backhoe, 6 Spool Hand Swing, Incl 2 - 37
1шт.
2
NSS
NOT SOLD SEPARAT
Block, Incl in 1
1шт.
3
87433030
OUTLET
Outlet
1шт.
4
87428491
SCREW,Hex
4шт.
5
87428492
SCREW,Hex
1шт.
6
87428495
O-RING,3.50" ID x 3.76" OD x .139" thk
1шт.
7
87428486
VALVE, CHECK
ASSY, Incl 8 - 13
1шт.
8
87455593
PLUG,7/8" - 14 ORB
ASSY, Incl 9, 10
1шт.
9
NSS
NOT SOLD SEPARAT
Plug, Incl in 8
1шт.
10
87455974
O-RING,0.097" Thk x 0.755" ID
1шт.
11
87455594
WASHER
Plastic
1шт.
12
87455595
SPRING
1шт.
13
87455596
PISTON
Poppet, Low Leak
1шт.
14
87426238
VALVE, CHECK
ASSY, Incl 15 - 19
3шт.
15
87455581
PLUG,Hex, 1/16" - 12 ORB
ASSY, Incl 16, 17
3шт.
16
NSS
NOT SOLD SEPARAT
Plug, Incl in 15
3шт.
17
87455975
O-RING
3шт.
18
87455582
SPRING
3шт.
19
87455583
VALVE POPPET
Load Check
3шт.
20
47538073
CHECK VALVE
1шт.
21
81868381
CHECK VALVE,1-1/16" - 12
ASSY, Anti Void, Incl 36, 37
1шт.
22
47520547
VALVE PRESSURE RELIE,205 Bar
Swing 207 Bar
2шт.
23
47537935
VALVE PRESSURE RELIE,221 Bar
1шт.
24
47520548
VALVE PRESSURE RELIE
283 Bar
2шт.
25
47520553
VALVE PRESSURE RELIE
Bucket A Port
1шт.
26
47520550
VALVE PRESSURE RELIE
Boom B Port
1шт.
27
47520549
VALVE PRESSURE RELIE
Dipper B Port
1шт.
28
84296826
SERVICE KIT
Mechanical Stabilizer End Group B Port
2шт.
29
84296859
KIT
Mechanical Backhoe Valve B Port End G
4шт.
30
84296862
KIT
Mech Boom B Port End Group
1шт.
31
87541939
GASKET KIT
ASSY, Incl 32 - 35
6шт.
32
87455536
RETAINING PLATE
6шт.
33
71103058
O-RING
6шт.
35
87455540
HEX SOC SCREW
12шт.
36
87455580
O-RING KIT
Backhoe Control Valve, Anti-Void Check Valve
1шт.
37
NSS
NOT SOLD SEPARAT
Anti Void Valve, Incl in 21
1шт.
38
47556611
SEAL KIT
Mechanical Backhoe Valve Seal
1шт.
Выбрано товаров: 38
