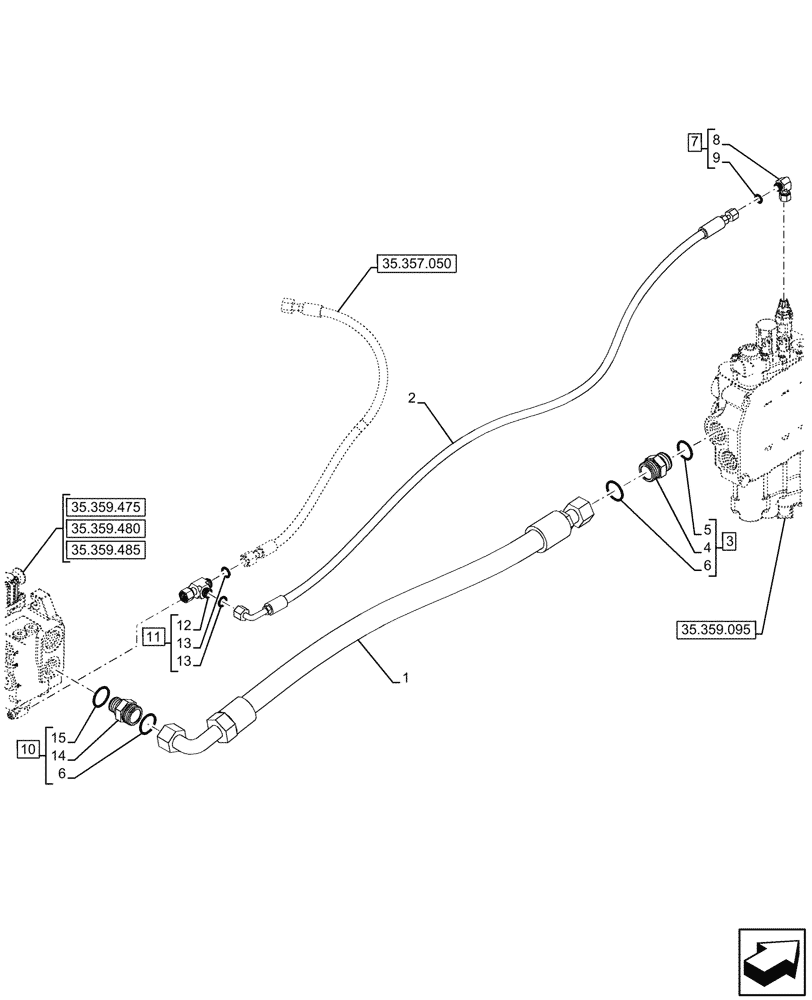

Запчасти Case 580N (35.359.115) - VAR - 747864 - LOADER, BACKHOE, VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

84468295

HYDRAULIC HOSE,19mm ID x 1020mm L

Loader PB Pilot

1шт.

2

84413043

HYDRAULIC HOSE,6.3mm ID x 1286mm L

Pilot Relief 3 Spool

1шт.

3

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 4, 5, 6 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

7

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

10

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 6 (Qty 1), 14, 15

1шт.

11

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Union Tee, Incl in 11

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 10

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
