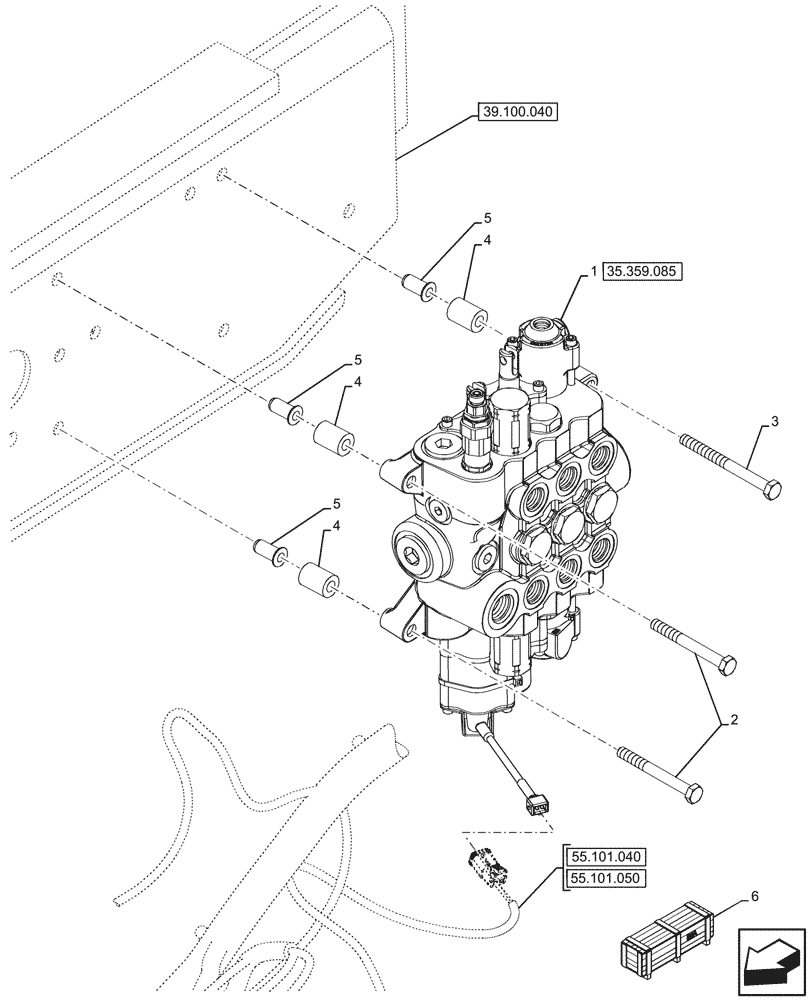

Запчасти Case 580N (35.359.080) - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

1

47907470

VALVE

ASSY, Loader, 3-Spool, Pilot Control

1шт.

2

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

3

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

4

87417599

SPACER,11mm ID x 22mm OD x 30mm Thk

3шт.

5

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

6

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1, 4, 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1, 4, 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
