Запчасти Case 580N (35.359.070) - VAR - 747776, 747864 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

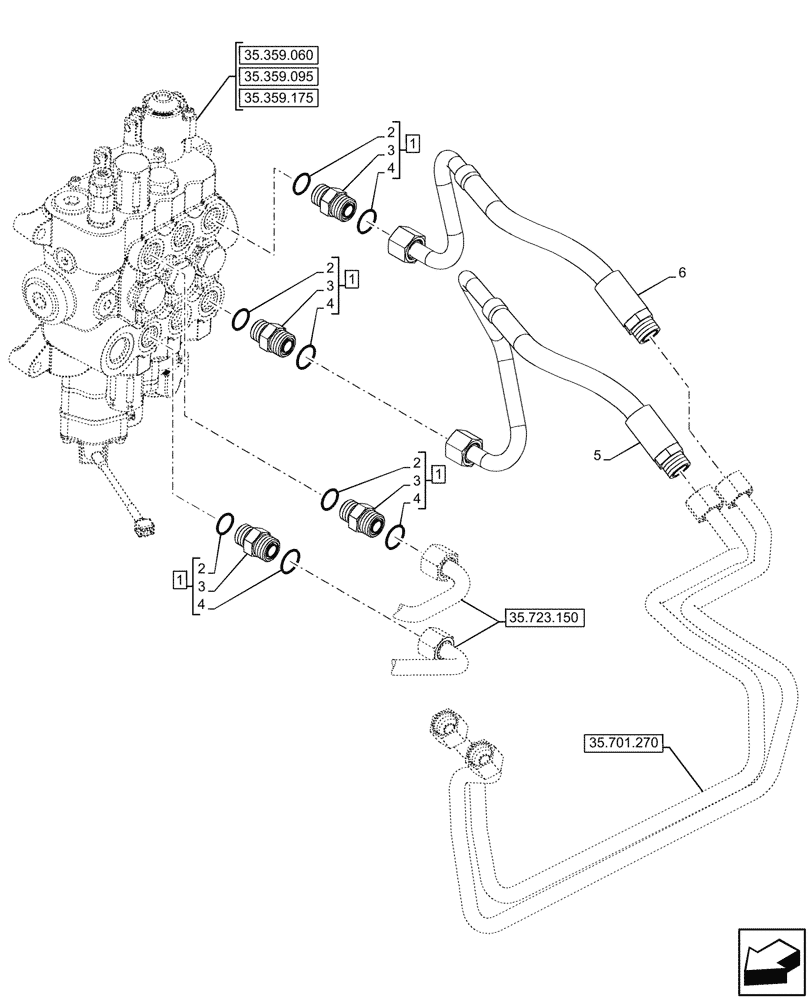

Схема запчастей Case 580N - (35.359.070) - VAR - 747776, 747864 - LOADER, CONTROL VALVE, MECHANICAL, 3-SPOOL, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.701.270
1
3
1
4
1
2
6
3
4
5
3
2
4
4
2
3
1
2
35.359.060
35.359.175
35.359.095
35.723.150

Артикул

Название

Примечание

Количество

1

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 2 - 4

4шт.

2

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

4шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

4шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

5

84293158

TUBE

4N1 Port B to Auxiliary Line

1шт.

6

84293160

TUBE

4N1 Port A to Auxiliary Line

1шт.

Выбрано товаров: 6
