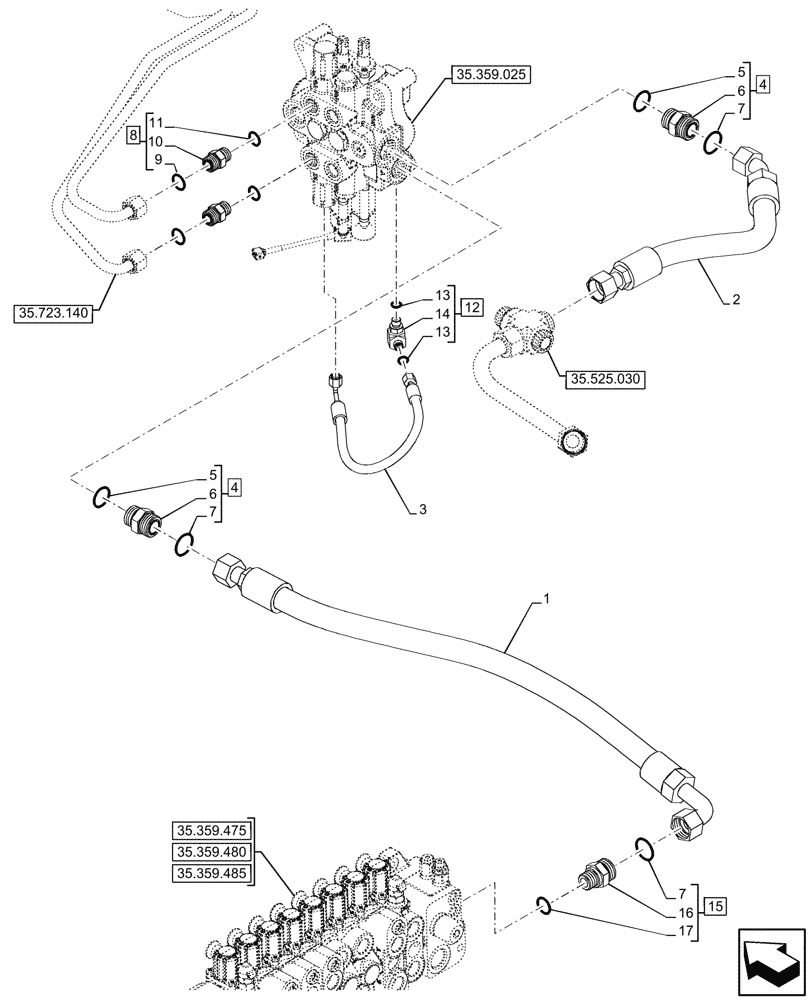

Запчасти Case 580N (35.359.035) - LOADER, CONTROL VALVE, PILOT CONTROLS, LINES (35) - HYDRAULIC SYSTEMS

1

84468286

HYDRAULIC HOSE,19mm ID x 1040mm L

Loader PB Pilot

1шт.

2

48038828

HYDRAULIC HOSE,25mm ID x 640mm L

Loader Valve to Tank

1шт.

3

84256410

HOSE ASSY.,6.3mm ID x 488mm L

Clam Pilot B

1шт.

4

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 5, 6, 7 (Qty 2)

2шт.

5

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

2шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

8

9621483

HYD CONNECTOR,1"-14 ORFS x 7/8"-14 ORB

ASSY, Incl 9 - 11

1шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

12

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

ASSY, Incl 13, 14

1шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 12

1шт.

15

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 7 (Qty 1), 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
