(35.359.010) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL, MOUNTING

Запчасти Case 580N (35.359.010) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS

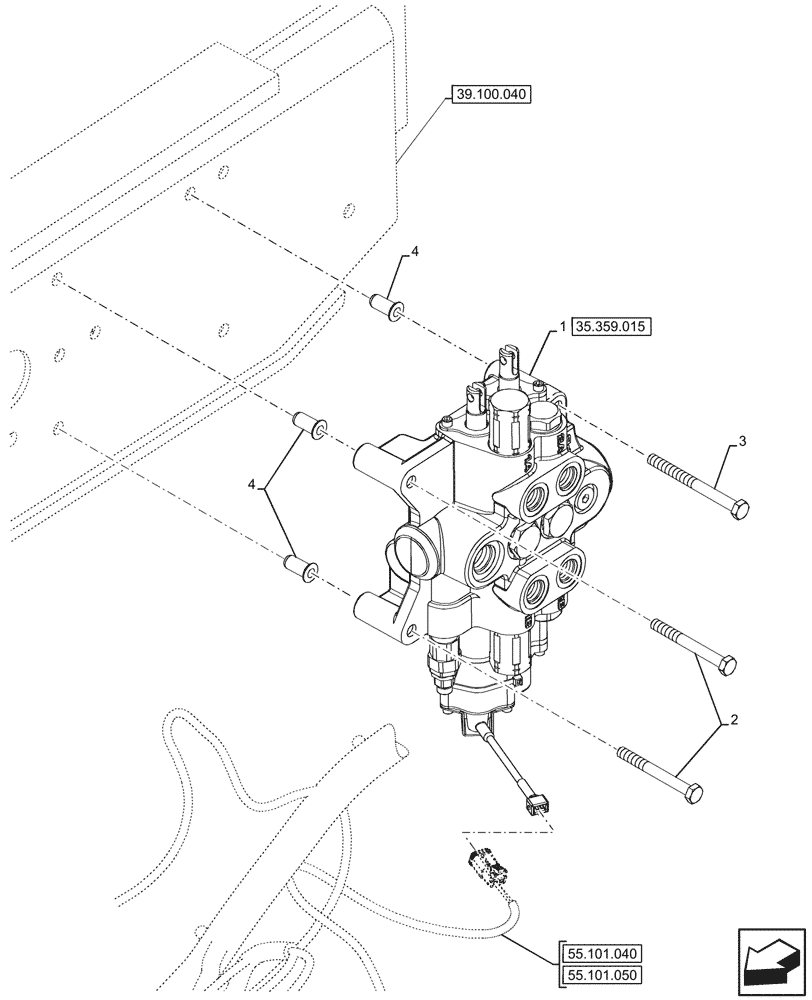

Схема запчастей Case 580N - (35.359.010) - LOADER, CONTROL VALVE, MECHANICAL, 2-SPOOL, MOUNTING (35) - HYDRAULIC SYSTEMS
39.100.040
4
4
2
1
3
55.101.040
55.101.050
35.359.015
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84218271

VALVE

ASSY, Loader 2 Spool

1шт.

2

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

3

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

4

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

3шт.

Выбрано товаров: 4
