Запчасти Case 580N (35.357.210) - 7-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS

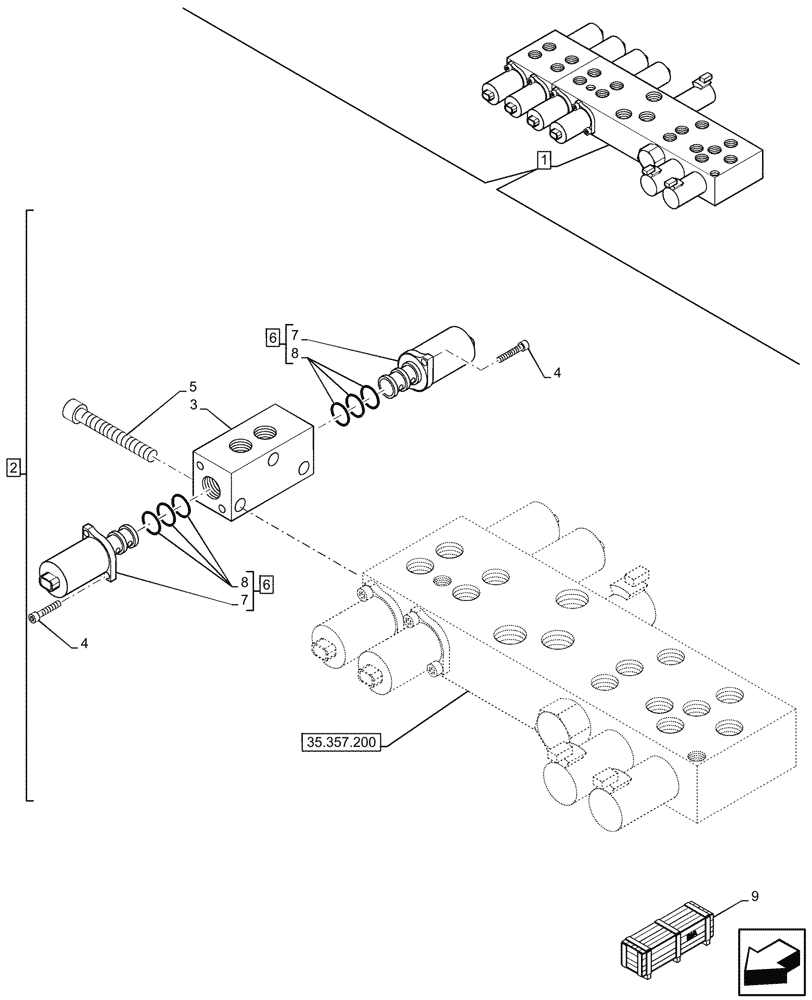

Схема запчастей Case 580N - (35.357.210) - 7-SPOOL, PRESSURE CONTROL VALVE, W/ PILOT CONTROLS, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.357.200
9
3
2
6
4
1
4
6
8
5
7
7
8

Артикул

Название

Примечание

Количество

1

47765051

PILOT VALVE

ASSY, Proportional Pilot Pressure, Incl 2 - 8

1шт.

See also Pilot Valve Components in Figure 35.357.200

1шт.

2

85828004

BODY

ASSY, 1 Function, Incl 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

1-Function Block, Incl in 2

1шт.

4

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

4шт.

5

14358921

HEX SOC SCREW,M5 x 50mm, Cl 8.8

3шт.

6

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 7, 8

2шт.

7

NSS

NOT SOLD SEPARAT

Solenoid Valve, Incl in 6

2шт.

8

85828000

SEAL KIT

Pilot Controls, Pressure Control Valve

2шт.

9

47670289

SERVICE KIT

Dual Auxiliary, Incl 2 - 8

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 590SN (Livery) NRC Models Only, W/ Standard Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 12
