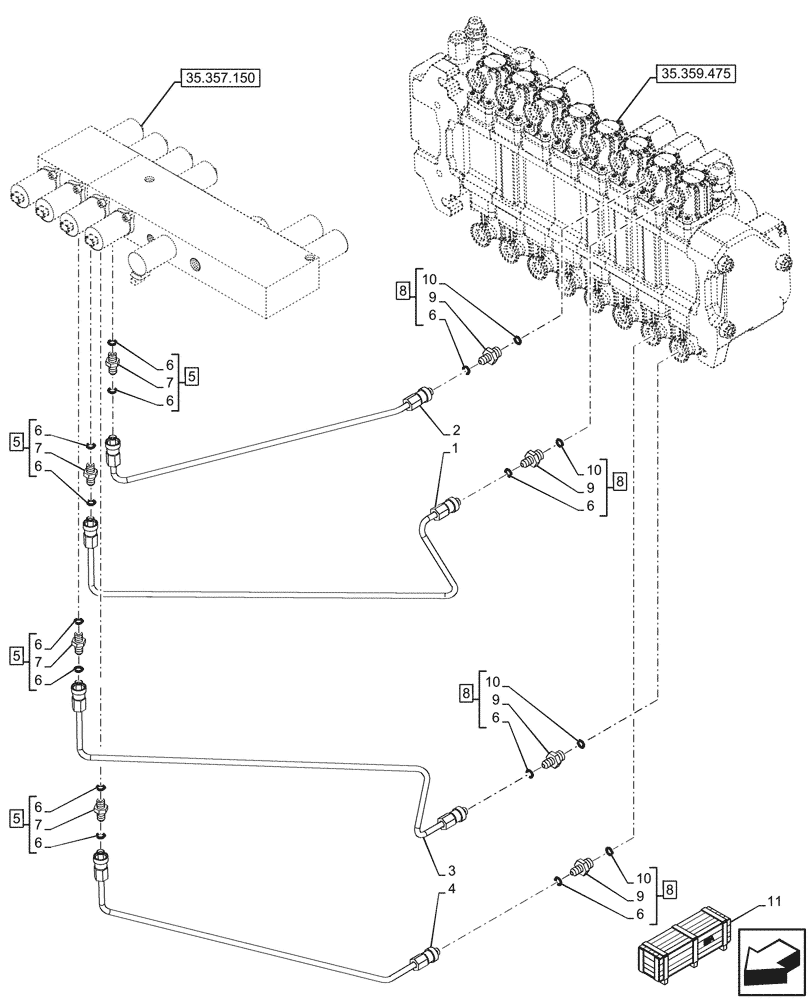

Запчасти Case 580N (35.357.180) - 8-SPOOL, PRESSURE CONTROL VALVE, LINE, EXTANDABLE DIPPER, W/ PILOT CONTROLS, W/ DOUBLE AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

87440837

HYD TUBE

1шт.

2

87440835

HYD TUBE

1шт.

3

87437635

HYD TUBE

From Reducing Valve to EXT A

1шт.

4

87437633

HYD TUBE

From Reducing Valve to EXT B

1шт.

5

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 6 (Qty 8), 7

4шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

12шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

4шт.

8

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 6 (Qty 4), 9, 10

4шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

4шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

11

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 1, 2, 5 - 10

1шт.

Valid for 590SN NRC Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47501547

CONSTRUCTION DIA

No Auxiliary to Combo, Incl 1, 2, 5 - 10

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

11

47662029

CONSTRUCTION DIA

Uni-Auxiliary to Combo, Incl 1, 2, 5 - 10

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Extendable Dipper and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
