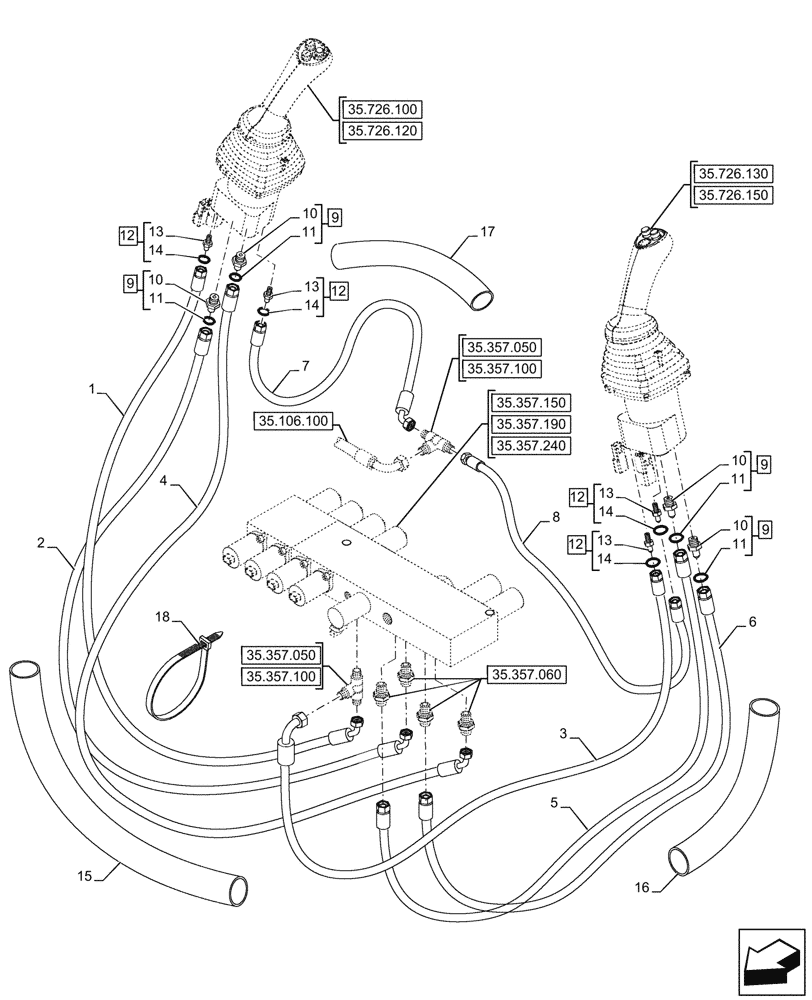

Запчасти Case 580N (35.357.080) - VAR - 423078, 747669 - PILOT CONTROLS, JOYSTICK, LINE (35) - HYDRAULIC SYSTEMS

1

87437923

HYDRAULIC HOSE,9.5mm ID x 1035mm L

LH Joystick Pressure to Pressure Red J

1шт.

2

87437928

HYDRAULIC HOSE,6.4mm ID x 1270mm L

LH Joystick 3 to Selector B4

1шт.

3

87437929

HYDRAULIC HOSE,9.5mm ID x 1105mm L

RH Joystick Pressure to Pressure Red J

1шт.

4

87437927

HYDRAULIC HOSE,6.4mm ID x 1295mm L

LH Joystick 1 to Selector B3

1шт.

5

87437935

HYDRAULIC HOSE,6.4mm ID x 1175mm L

RH Joystick 3 to Selector B2

1шт.

6

87437933

HYDRAULIC HOSE,6.4mm ID x 1185mm L

RH Joystick 1 to Selector B1

1шт.

7

87437924

HYDRAULIC HOSE,9.5mm ID x 1000mm L

LH Joystick Tank to Pressure Red T

1шт.

8

87437930

HYDRAULIC HOSE,9.5mm ID x 1345mm L

RH Joystick Tank to Pressure Red T

1шт.

9

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 10, 11, Incl 10, 11

4шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9, Incl in 9

4шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 13, 14, Incl 13, 14

4шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 12, Incl in 12

4шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

15

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

16

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

1шт.

17

399004A1

HOSE PROTECTION,38.90 mm ID x 270.00 mm

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
