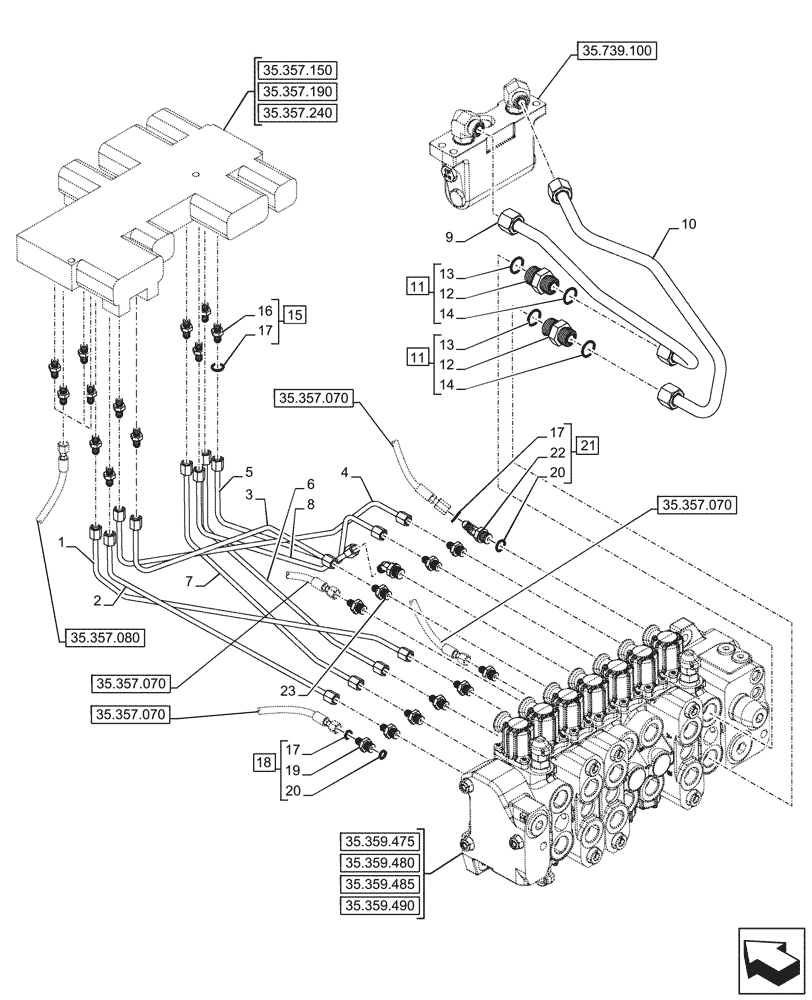

Запчасти Case 580N (35.357.060) - VAR - 747669 - BACKHOE ARM, PILOT CONTROLS, LINE (35) - HYDRAULIC SYSTEMS

1

87439213

HYD TUBE

Selector A3 to Boom B

1шт.

2

87437621

TUBE,.25" OD

Selector A1 to Dipper B

1шт.

3

87437623

TUBE,.25" OD

Selector A2 to Dipper A

1шт.

4

87439215

HYD TUBE

Selector A4 to Boom A

1шт.

5

87437627

HYD TUBE

Reducing Valve to LH Stabilizer A

1шт.

6

87437625

HYD TUBE

Reducing Valve to LH Stabilizer B

1шт.

7

87437629

HYD TUBE

Reducing Valve to RH Stabilizer B

1шт.

8

87445557

HYD TUBE

Reducing Valve to RH Stabilizer A

1шт.

9

84332788

HYD TUBE

Swing Damp Top Port

1шт.

10

84332787

HYD TUBE

Swing Damp Bottom Port

1шт.

11

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 12 - 14, Incl 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11, Incl in 11

2шт.

13

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

15

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl 16, 17, Incl 16, 17 (Qty 12)

12шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15, Incl in 15

12шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

23шт.

18

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 17, 19, 20, Incl 17 (Qty 9), 19, 20 (Qty 9)

9шт.

19

NSS

NOT SOLD SEPARAT

Connector, Incl in 18, Incl in 18

9шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

11шт.

21

218-5365

ELBOW,45 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

ASSY, Incl 17, 20, 22, Incl 17 (Qty 2), 20 (Qty 2), 22

2шт.

22

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 21, Incl in 21

2шт.

23

87423401

FITTING,1/4" JIC x 3/8" ORB

Special Orifice Pilot

1шт.
