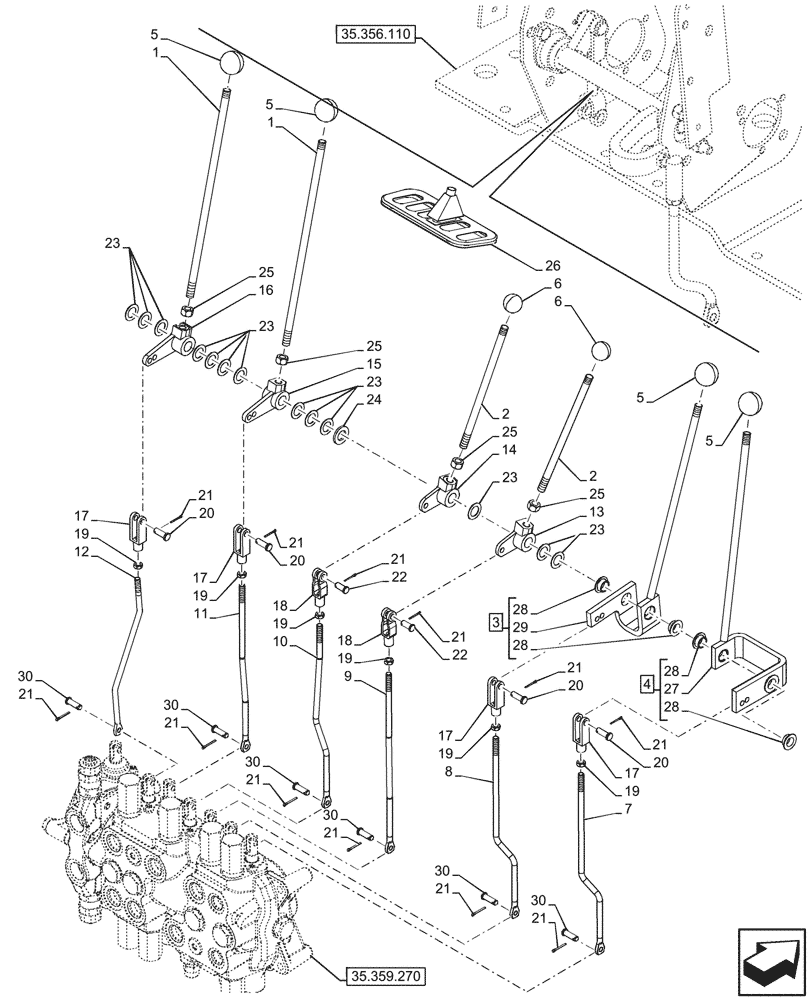

Запчасти Case 580N (35.356.120) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROL, EXTANDABLE DIPPER, BRAZIL, W/ 2 LEVER CONTROLS (35) - HYDRAULIC SYSTEMS

1

136263A1

ROD,12.7mm OD x 407mm L

Handle

2шт.

2

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

Stabilizer Lever

2шт.

3

136269A1

LEVER

ASSY, Bucket, Incl 28 (Qty 2), 29

1шт.

4

136267A1

LEVER

ASSY, Boom, Incl 27, 28 (Qty 2)

1шт.

5

L54563

KNOB

4шт.

6

D59912

KNOB

Control Handle

2шт.

7

87422241

THREADED ROD,9.53mm D x 363mm L

1шт.

8

87422243

THREADED ROD,9.53mm D x 368mm L

1шт.

9

87422245

THREADED ROD,9.53mm D x 368mm L

1шт.

10

87422247

THREADED ROD,9.53mm D x 352mm L

1шт.

11

87422249

THREADED ROD,9.53mm D x 368mm L

1шт.

12

320989A1

ROD, CONNECTING

1шт.

13

D150434

CRANK LEVER

1шт.

14

D150435

CRANK LEVER

1шт.

15

D150397

CRANK LEVER

1шт.

16

182006A1

LEVER

Extendable Dipper

1шт.

17

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

4шт.

18

D150493

END

2шт.

19

425-156

JAM NUT,Jam, 3/8"-24, G5

6шт.

20

D149288

PIN,8.33mm OD x 30.66mm L

4шт.

21

432-612

COTTER PIN,3/32" x 3/4"

12шт.

22

427-6088

CLEVIS PIN,3/8" x 3/4"

2шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

13шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

25

425-118

NUT,1/2"-20, G5

4шт.

26

D149867

BOOT

1шт.

27

NSS

NOT SOLD SEPARAT

Lever, Incl in 4

1шт.

28

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

4шт.

29

NSS

NOT SOLD SEPARAT

Lever, Incl in 3

1шт.

30

D149287

PIN,7.9mm OD x 26.72mm L

6шт.
