(35.356.100) - BACKHOE CONTROL VALVE, 6-SPOOL, MECHANICAL CONTROL, STANDARD DIPPER, FOOT SWING, BRAZIL, W/ 2 LEVER CONTROLS, MOUNTING PARTS

Запчасти Case 580N (35.356.100) - BACKHOE CONTROL VALVE, 6-SPOOL, MECHANICAL CONTROL, STANDARD DIPPER, FOOT SWING, BRAZIL, W/ 2 LEVER CONTROLS, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS

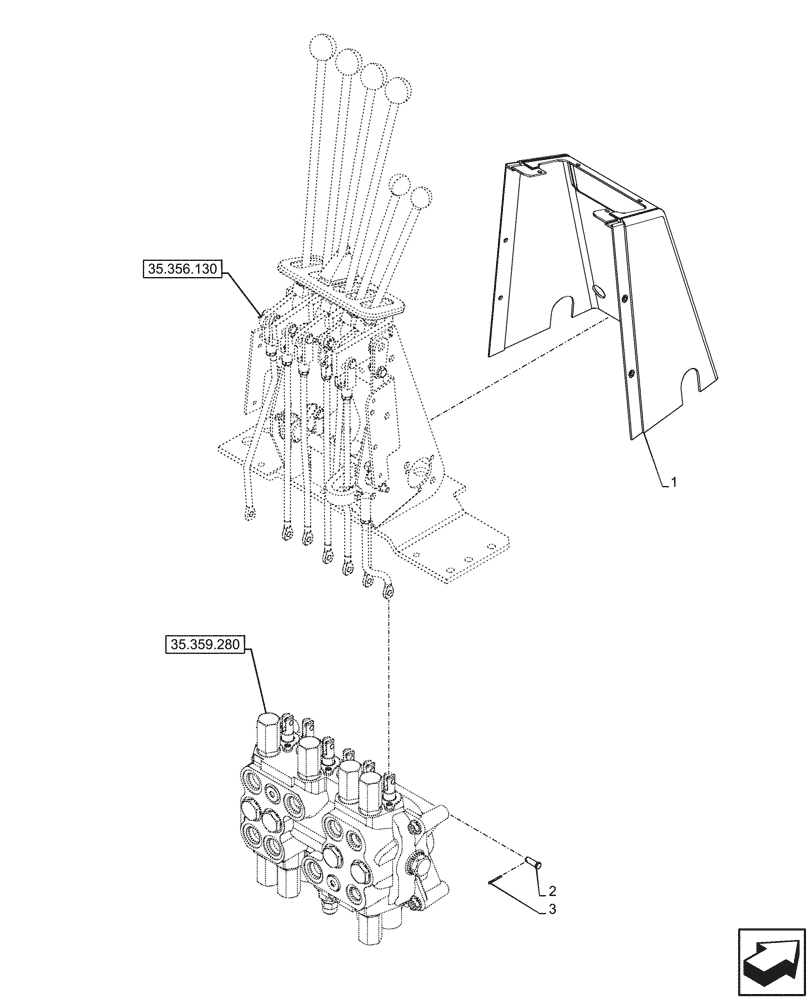

Схема запчастей Case 580N - (35.356.100) - BACKHOE CONTROL VALVE, 6-SPOOL, MECHANICAL CONTROL, STANDARD DIPPER, FOOT SWING, BRAZIL, W/ 2 LEVER CONTROLS, MOUNTING PARTS (35) - HYDRAULIC SYSTEMS
35.356.130
2
1
3
35.359.280
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47946531

COVER

1шт.

2

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

3

432-612

COTTER PIN,3/32" x 3/4"

6шт.

Выбрано товаров: 3
