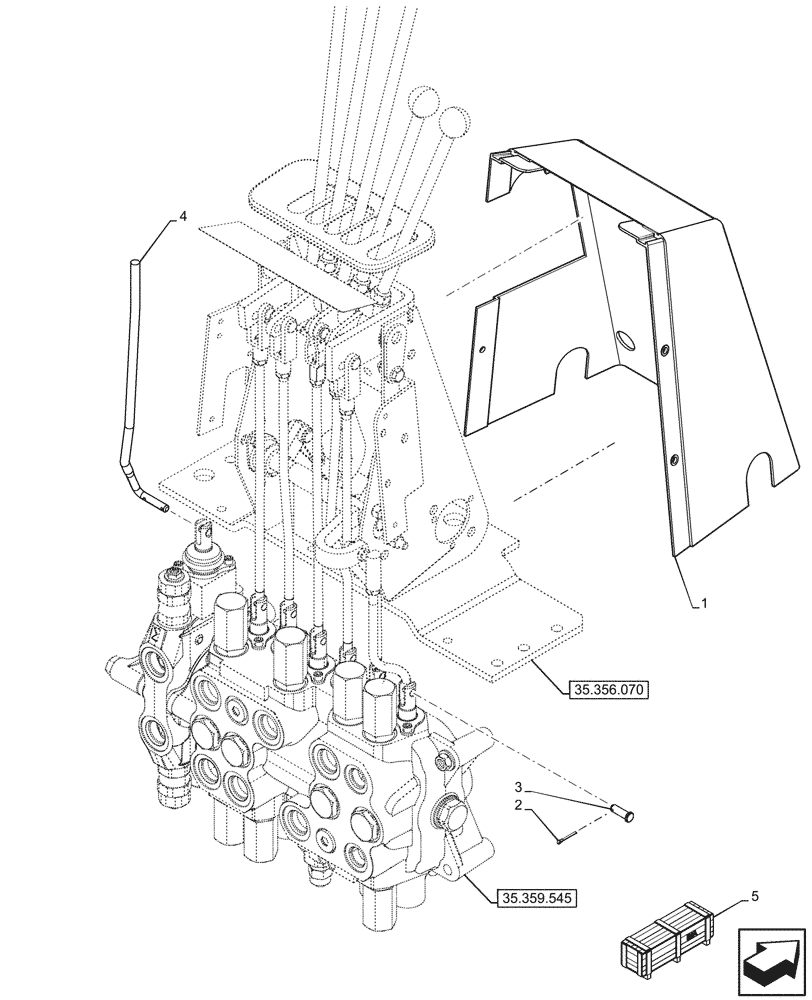

Запчасти Case 580N (35.356.080) - BACKHOE CONTROL VALVE, 7-SPOOL, MECHANICAL CONTROL, STANDARD DIPPER, W/O 2 LEVER CONTROLS, W/ DOUBLE AUXILIARY (35) - HYDRAULIC SYSTEMS

1

47945922

COVER

1шт.

2

432-612

COTTER PIN,3/32" x 3/4"

6шт.

3

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

4

84398267

ADJUSTMENT ROD,9.525mm D x 315.2mm L

1шт.

5

47945923

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 4

1шт.

Valid for 580N (Livery) NRC, 580SN (Livery) NRC, 580SN WT (Livery) NRC Models Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47945928

CONSTRUCTION DIA

Conversion 2 Lever to Foot Swing, Incl 1

1шт.

Valid for All Models, W/ Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47945938

CONSTRUCTION DIA

Combo Auxiliary, Incl 4

1шт.

Valid for All Models, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47945926

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 4

1шт.

Valid for 590SN (Livery) NRC Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
