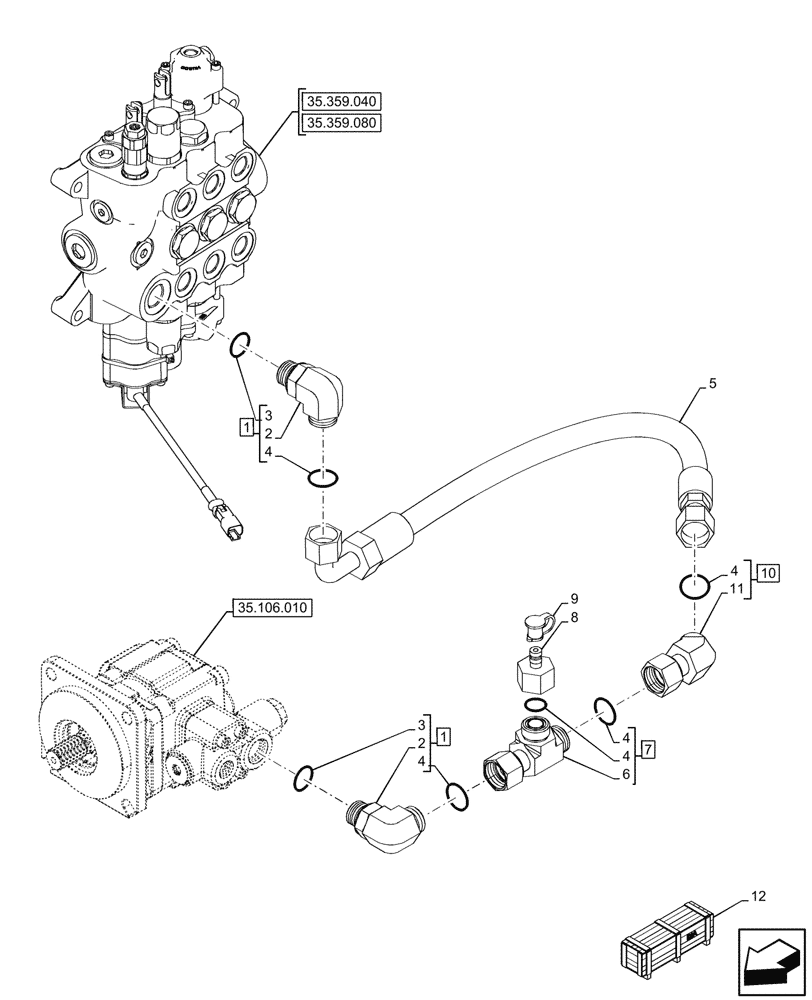

Запчасти Case 580N (35.106.110) - LOADER, HYDRAULIC PUMP, CONTROL VALVE, 3-SPOOL, LINE (35) - HYDRAULIC SYSTEMS

1

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 2, 3, 4 (Qty 2)

2шт.

2

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 1

2шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

5

84391232

HOSE ASSY.,16mm ID x 695mm L

Pump to Valve

1шт.

6

NSS

NOT SOLD SEPARAT

Union Tee, Incl in 7

1шт.

7

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

1шт.

8

84241474

DIAGNOSTIC COUPLER

1шт.

9

H434163

DUST CAP

1шт.

10

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

1шт.

11

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 10

1шт.

12

47955704

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47955719

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Mechanical Control and Powershift Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 5

1шт.

Valid for 580N (Livery) NRC Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
