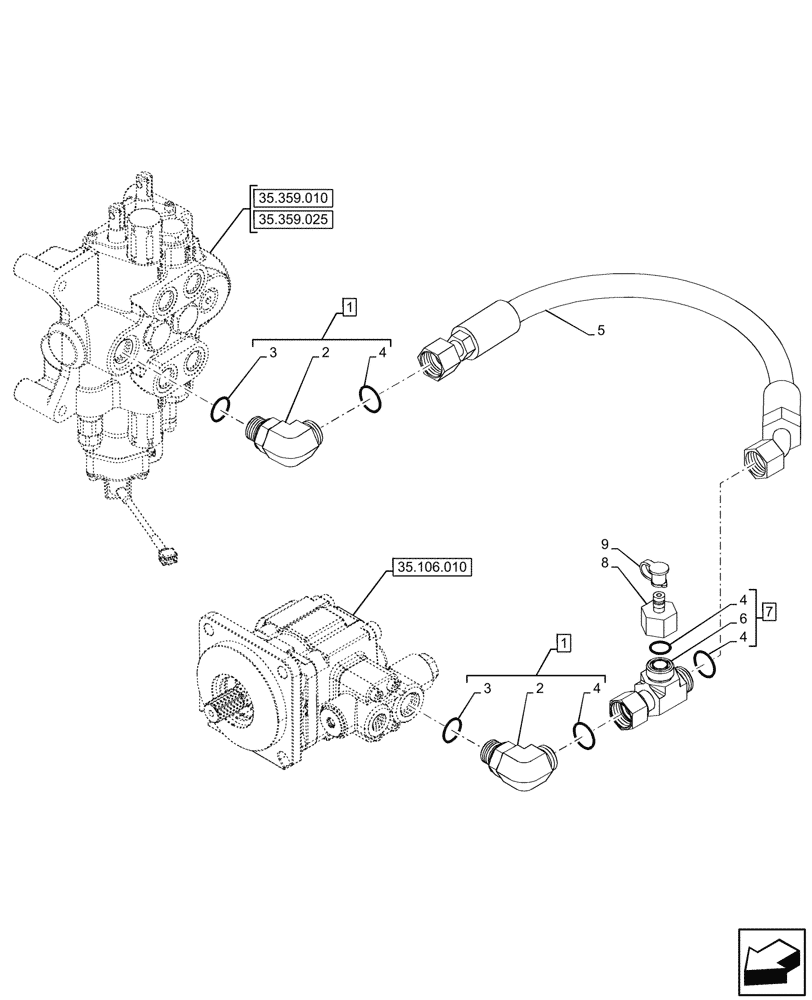

Запчасти Case 580N (35.106.100) - LOADER, HYDRAULIC PUMP, CONTROL VALVE, 2-SPOOL, LINE (35) - HYDRAULIC SYSTEMS

1

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 2, 3, 4 (Qty 2)

2шт.

2

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 1

2шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

47865747

HYDRAULIC HOSE,16mm ID x 680mm L, SAE 100R16

Pump to Valve

1шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

1шт.

7

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

ASSY, Incl 4 (Qty 2), 6

1шт.

8

84241474

DIAGNOSTIC COUPLER

Male

1шт.

9

H434163

DUST CAP

1шт.
