(35.106.010) - HYDRAULIC PUMP, LINE

Запчасти Case 580N (35.106.010) - HYDRAULIC PUMP, LINE (35) - HYDRAULIC SYSTEMS

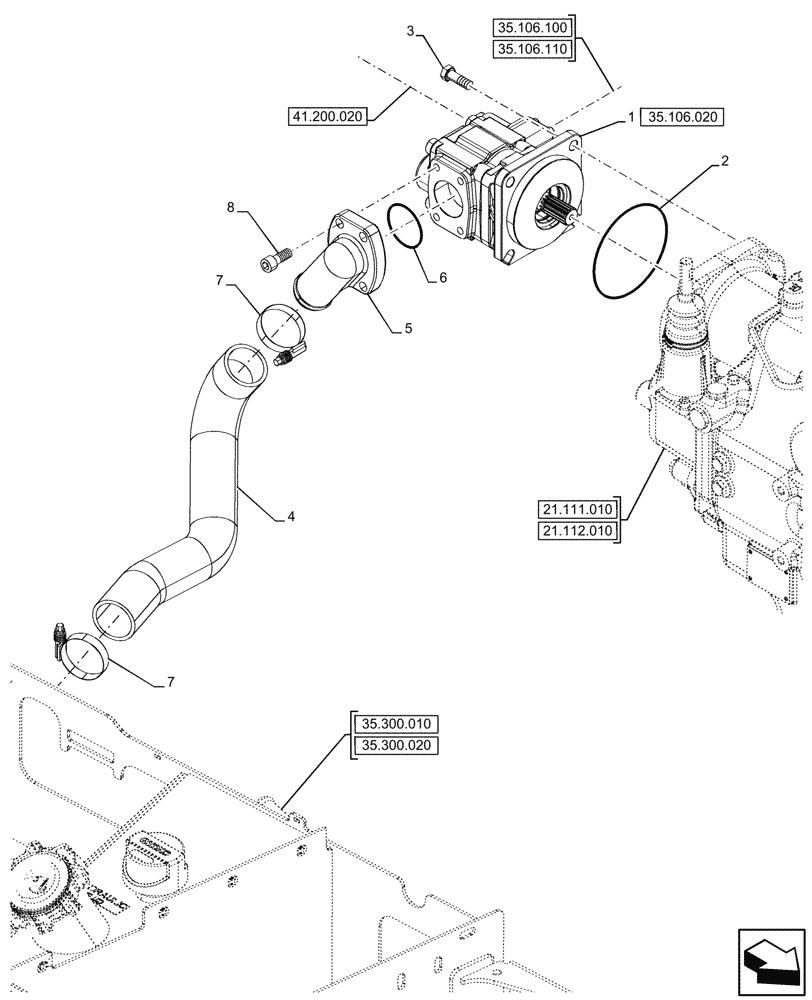

Схема запчастей Case 580N - (35.106.010) - HYDRAULIC PUMP, LINE (35) - HYDRAULIC SYSTEMS
35.106.100
7
1
4
7
8
5
2
6
3
35.106.110
35.300.010
41.200.020
21.111.010
35.300.020
21.112.010
35.106.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

48030083

HYDRAULIC PUMP,52.2CC

ASSY

1шт.

2

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

3

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

4

47865750

HYDRAULIC HOSE,50.8mm ID

Tank to Pump

1шт.

5

87727923

FLANGE

1шт.

6

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

7

259044A1

CLAMP

2шт.

8

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.
