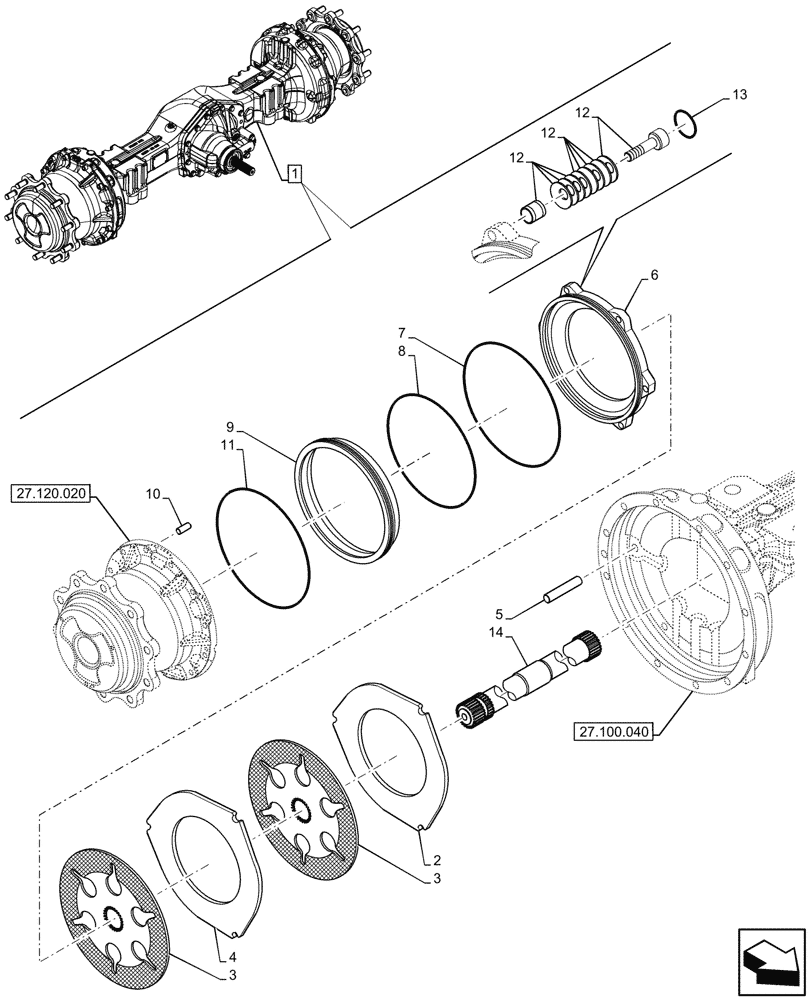

Запчасти Case 580N (33.202.070) - REAR AXLE, SHAFT, BRAKES (33) - BRAKES & CONTROLS

1

84178115

REAR AXLE

ASSY, Rear, Incl 2 - 14

1шт.

See also Rear Axle Components in Figures 27.100.040, 27.106.040, 27.106.050, 27.106.060, 27.120.020

1шт.

2

87708433

BRAKE PLATE,5mm Thk

2шт.

3

87708434

BRAKE PLATE

4шт.

4

87708435

BRAKE PLATE,8mm Thk

2шт.

5

139294A1

GUIDE

6шт.

6

87708436

BRAKE CYLINDER

Piston

2шт.

7

87708438

O-RING

2шт.

8

371144A1

O-RING

Piston External

2шт.

9

87708440

PISTON

Brake

2шт.

10

D142890

DOWEL

2шт.

11

371145A1

O-RING

Piston Carrier

2шт.

12

87708441

BRAKE ADJUSTER,0.6mm

Self Adjust KIT 0.6mm

6шт.

13

87708442

CIRCLIP

6шт.

14

87708431

SHAFT,734mm / 28.897"

RH

1шт.

14

87708432

SHAFT,629mm / 24.763"

LH

1шт.
