(27.106.120) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DIFFERENTIAL LOCK, OIL, SUCTION PIPE

Запчасти Case 580N (27.106.120) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DIFFERENTIAL LOCK, OIL, SUCTION PIPE (27) - REAR AXLE SYSTEM

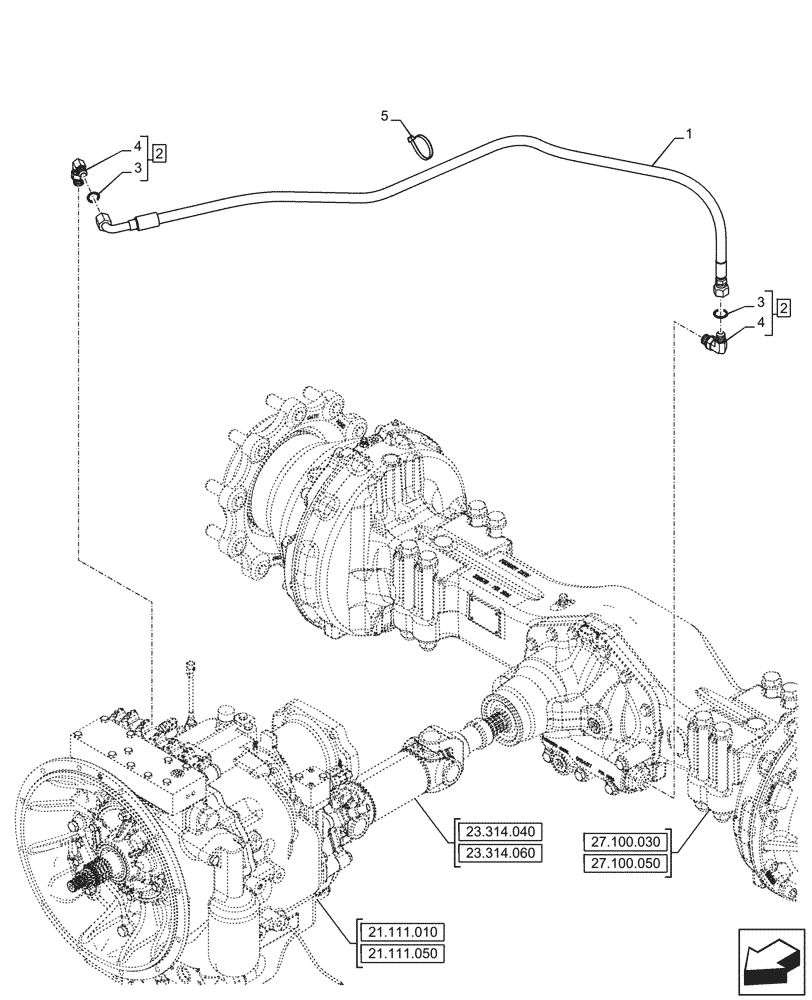

Схема запчастей Case 580N - (27.106.120) - VAR - 423060, 423061 - TRANSMISSION, SEMI-POWERSHIFT, DIFFERENTIAL LOCK, OIL, SUCTION PIPE (27) - REAR AXLE SYSTEM
23.314.060
5
2
4
3
3
1
4
2
27.100.030
23.314.040
27.100.050
21.111.010
21.111.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87431701

HYDRAULIC HOSE,6.4mm ID x 1350mm L

Differential Lock

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl 3, 4

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 2

2шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
