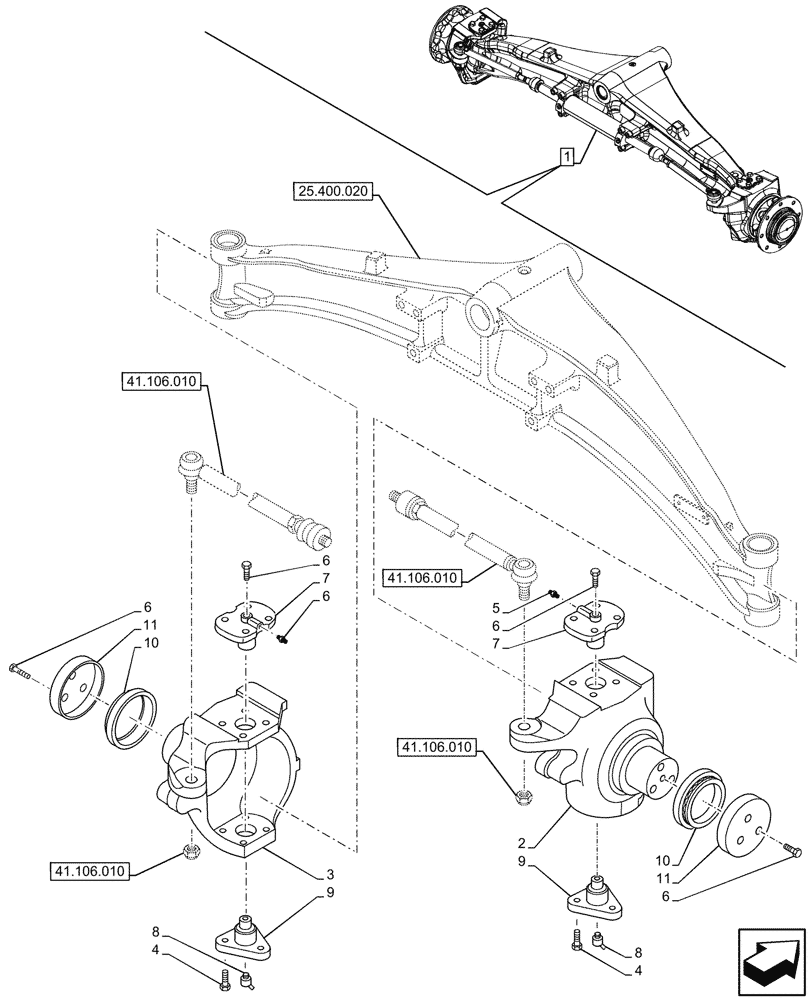

Запчасти Case 580N (25.400.030) - FRONT AXLE, STEERING KNUCKLE, 2WD (25) - FRONT AXLE SYSTEM

1

86990836

FRONT AXLE

ASSY, LV80, Incl 2 - 11

1шт.

See also Front Axle Components in Figures 25.400.020, 25.400.040, 41.106.010, 41.216.010

1шт.

2

429232A1

STEERING KNUCKLE,LH

RH

1шт.

3

429231A1

STEERING KNUCKLE,RH

LH

1шт.

4

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

6шт.

5

712998R91

LUBE NIPPLE,M6 x 1, 16mm lg

2шт.

6

100533A1

BOLT,Self-Lock, M12 x 30mm

14шт.

7

122265A1

PIN,35mm / 45mm OD x 45.5mm L

2шт.

8

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.

9

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

2шт.

10

401059A1

THRUST BEARING

2шт.

11

401060A1

THRUST WASHER

2шт.
