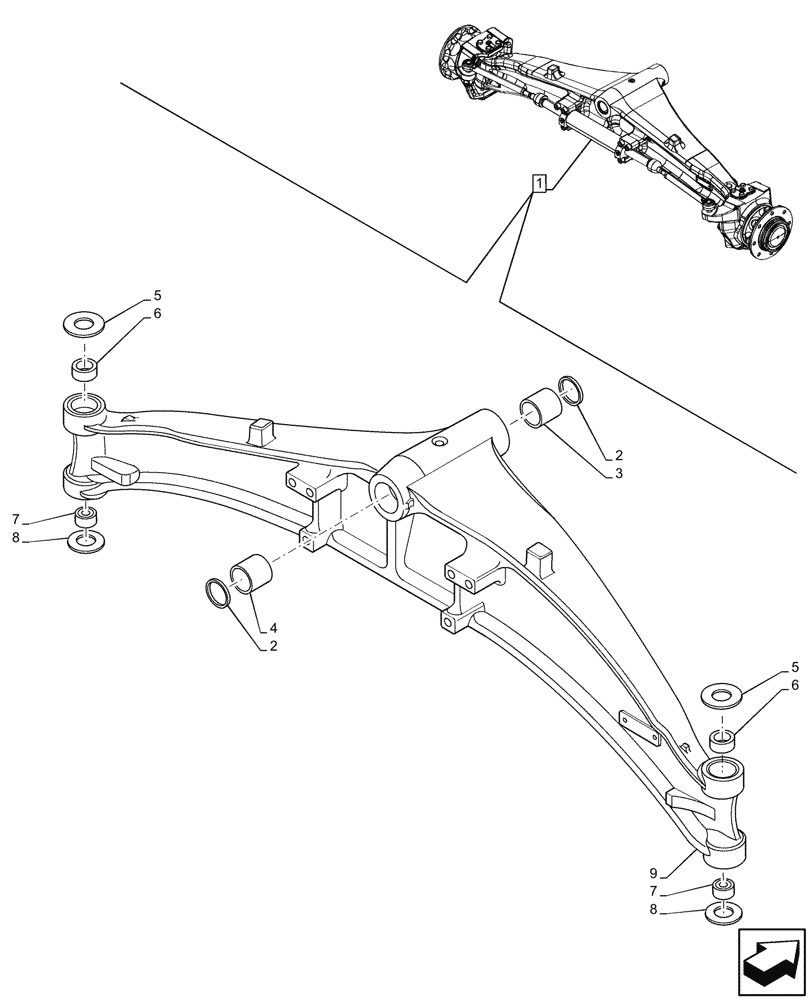

Запчасти Case 580N (25.400.020) - FRONT AXLE, BODY, 2WD (25) - FRONT AXLE SYSTEM

1

86990836

FRONT AXLE

ASSY, LV80, Incl 2 - 9

1шт.

See also Front Axle Components in Figures 25.400.030, 25.400.040, 41.106.010, 41.216.010

1шт.

2

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

3

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

1шт.

4

D149725

BUSHING,59.75 OD x 54mm L

1шт.

5

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

2шт.

6

87400286

BUSHING

2шт.

7

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

8

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

2шт.

9

429230A1

AXLE HOUSING

1шт.
