Запчасти Case 580N (25.108.100) - FRONT AXLE, STEERING KNUCKLE, HUB, 4WD (25) - FRONT AXLE SYSTEM

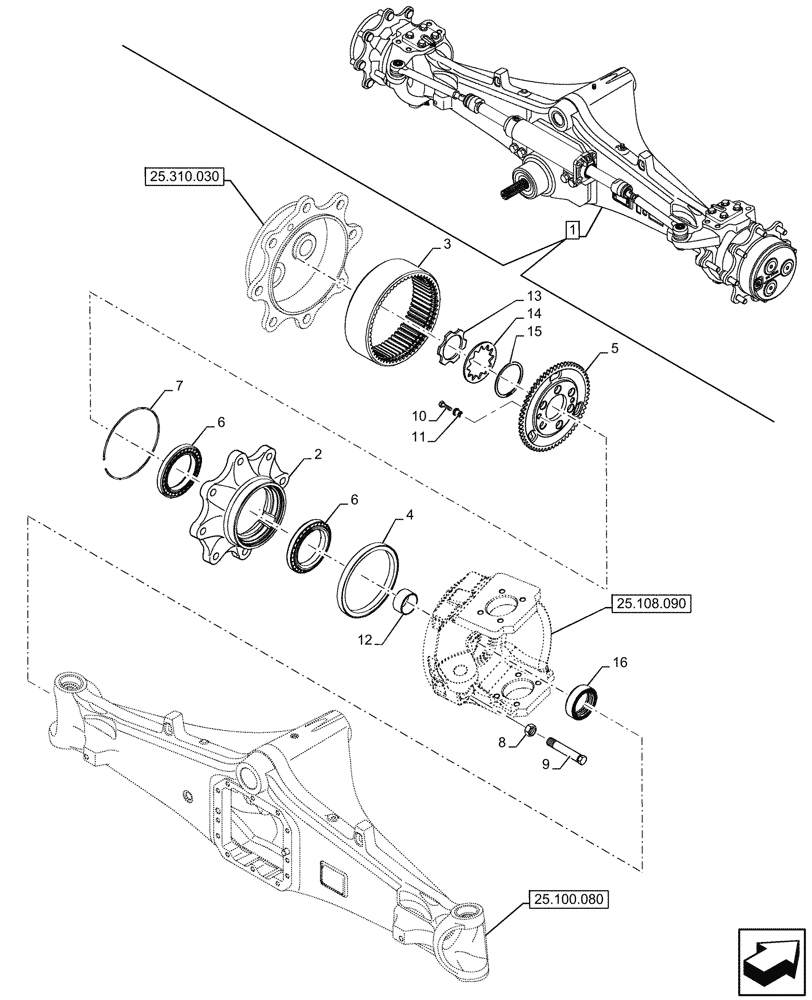

Схема запчастей Case 580N - (25.108.100) - FRONT AXLE, STEERING KNUCKLE, HUB, 4WD (25) - FRONT AXLE SYSTEM
25.108.090
7
15
9
4
13
6
11
16
5
8
10
6
1
12
14
2
3
25.310.030
25.100.080

Артикул

Название

Примечание

Количество

1

84497927

FRONT AXLE

ASSY, Grey, STD ACP, 12.1-1, Incl 2 - 16

1шт.

See also Front Axle Components in Figures 25.100.080, 25.100.090, 25.102.050, 25.102.060, 25.108.090, 25.108.110, 25.310.030, 41.106.060, 41.216.060

1шт.

2

47491944

HUB

PS 1121, Machining

1шт.

3

47438349

RING GEAR,60 teeth

1шт.

4

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

1шт.

5

84469354

SUPPORT

Ring Gear, PS Axle

1шт.

6

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

TM JL819349 / JL

2шт.

7

5165162

SNAP RING,M50, Int

1шт.

8

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

1шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

Limitation Steering

1шт.

10

84404452

BOLT,Hex, M10 x 40, Full, Cl. 8.8

6шт.

11

84270060

SLEEVE,10.55mm ID x 16.069mm OD x 23mm L

T-Dowel

6шт.

12

84469400

BRONZE BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

13

47703830

SNAP RING,M39, Int

Circlip

1шт.

14

84469371

THRUST WASHER,33.08mm ID x 51.25mm OD x 2.5mm thk

Internal

1шт.

15

84469386

THRUST WASHER,45mm ID x 64mm OD x 2.5mm thk

Internal

1шт.

16

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

1шт.

Выбрано товаров: 17
