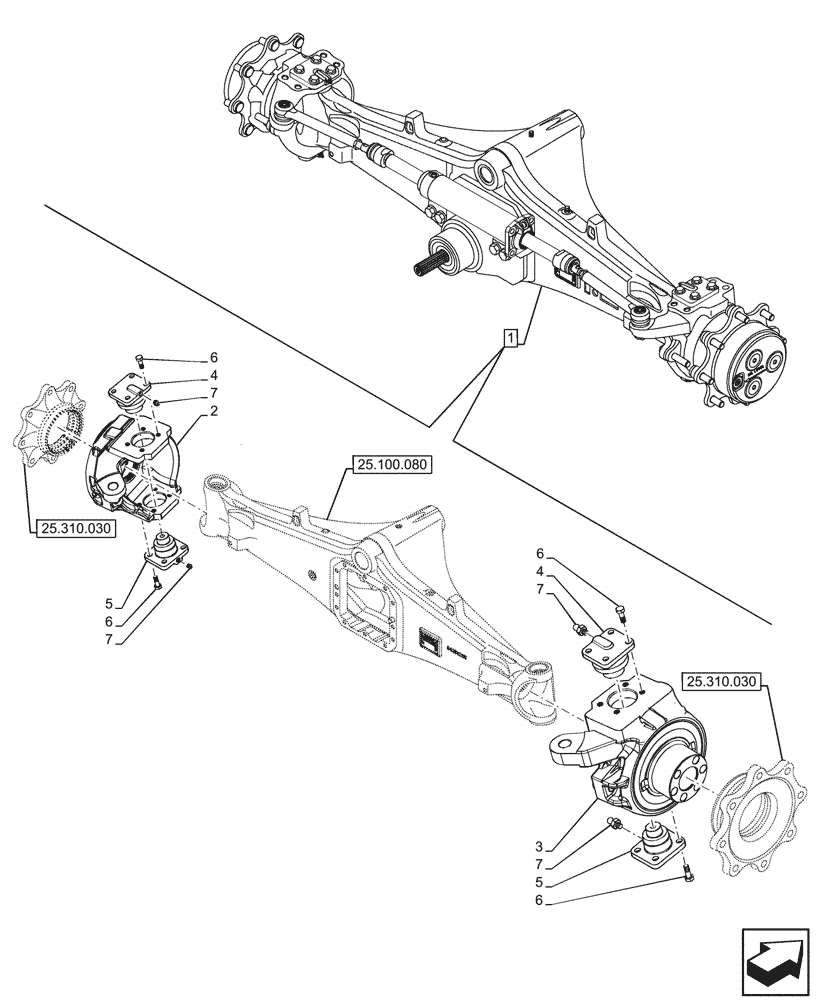

Запчасти Case 580N (25.108.090) - FRONT AXLE, STEERING KNUCKLE, PIN, 4WD (25) - FRONT AXLE SYSTEM

1

84497927

FRONT AXLE

ASSY, Grey, STD ACP, 12.1-1, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.100.080, 25.100.090, 25.102.050, 25.102.060, 25.108.100, 25.108.110, 25.310.030, 41.106.060, 41.216.060

1шт.

2

84497943

STEERING KNUCKLE

LH PS1121 Machining

1шт.

3

84497941

STEERING KNUCKLE

RH PS1121 Machining

1шт.

4

84483732

PIN,34.9mm / 45mm OD x 44.2mm L

King Steering Knuckle Top

2шт.

5

84527633

PIN,25mm / 45mm OD x 39.9mm L

King Steering Knuckle Bottom

2шт.

6

47723589

SERRATED BOLT,Hex Flg, M12 x 1.75 x 33mm, Cl 12.9, Full Thd

16шт.

7

84351730

FITTING,M10 x 1

4шт.
