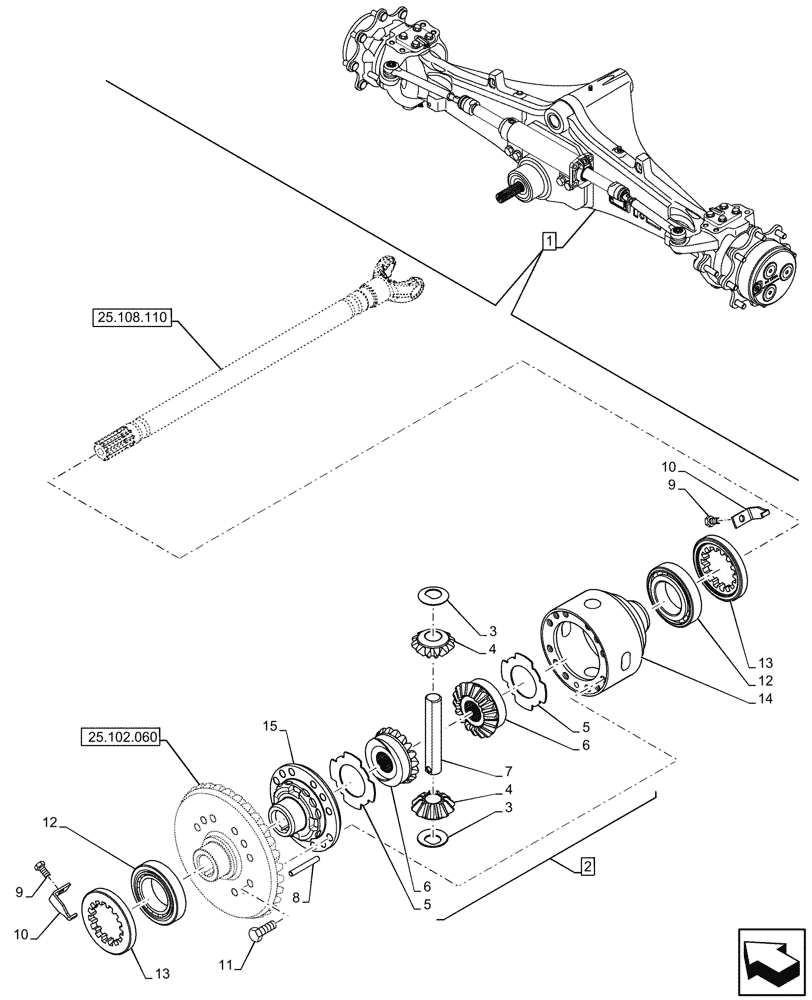

Запчасти Case 580N (25.102.050) - FRONT AXLE, DIFFERENTIAL GEAR, 4WD (25) - FRONT AXLE SYSTEM

1

84497927

FRONT AXLE

ASSY, Grey, STD ACP, 12.1-1, Incl 2 - 15

1шт.

See also Front Axle Components in Figures 25.100.080, 25.100.090, 25.102.060, 25.108.090, 25.108.100, 25.108.110, 25.310.030, 41.106.060, 41.216.060

1шт.

2

47593452

DIFFERENTIAL ASSY

Incl 3 - 7

1шт.

3

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

Pinion

2шт.

4

47777024

PINION,12T

2шт.

5

84529087

CLUTCH DISC,49.1mm ID x 85mm OD x 1.5mm Thk

Separator

2шт.

6

47777025

GEAR,18T

2шт.

7

84268545

PIN,21.9mm OD x 122.9mm L

Differential Cross

1шт.

8

84268547

PIN,6.99mm OD x 61.5mm L

Dowel

1шт.

9

87015743

BOLT,Hex, M8 x 16mm, Cl 10.9

2шт.

10

87748532

RETAINER

Bearing Lock

2шт.

11

47582654

BOLT,Hex, M10 x 75mm, Cl 12.9

12шт.

12

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

13

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.

14

84540883

HOUSING

1шт.

15

84540882

HOUSING

Differential RH

1шт.
