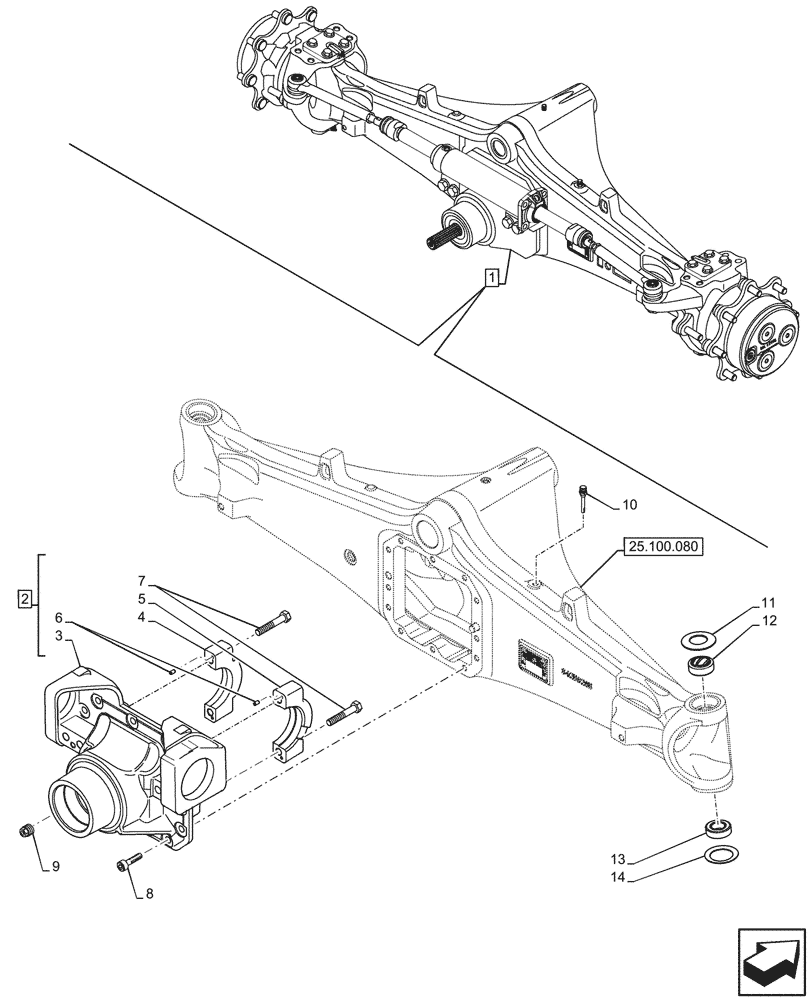

Запчасти Case 580N (25.100.090) - FRONT AXLE, HOUSING, COVERS, 4WD (25) - FRONT AXLE SYSTEM

1

84497927

FRONT AXLE

ASSY, Grey, STD ACP, 12.1-1, Incl 2 - 14

1шт.

See also Front Axle Components in Figures 25.100.080, 25.102.050, 25.102.060, 25.108.090, 25.108.100, 25.108.110, 25.310.030, 41.106.060, 41.216.060

1шт.

2

84527674

COVER ASSY

Differential, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Cover Differential, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

LH Bearing, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

RH Bearing, Incl in 2

1шт.

6

47486257

BUSHING,12mm ID x 15mm OD x 25mm L

4шт.

7

87015541

BOLT,Hex, M12 x 70, 10.9

4шт.

8

47723589

SERRATED BOLT,Hex Flg, M12 x 1.75 x 33mm, Cl 12.9, Full Thd

10шт.

9

14326211

PLUG,M22 x 1.50, R50, ZND

Pipe Magnetic

2шт.

10

84258517

BREATHER,M10 x 1

1шт.

11

84241623

SPRING,Belleville, 36.13mm ID x 70.85mm OD x 2.26mm Thk

2шт.

12

84529088

BUSHING,35mm ID x 46.99mm OD x 18.45mm W

2шт.

13

84528985

BEARING ASSY,24.99mm ID x 46.99mm OD x 14.77mm W

2шт.

14

84529094

Belleville

SPRING,42.6mm ID x 60.85mm OD x 1mm Thk

2шт.
