(23.314.080) - VAR - 745136 - FRONT, DRIVE SHAFT, GUARD, 4WD

Запчасти Case 580N (23.314.080) - VAR - 745136 - FRONT, DRIVE SHAFT, GUARD, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

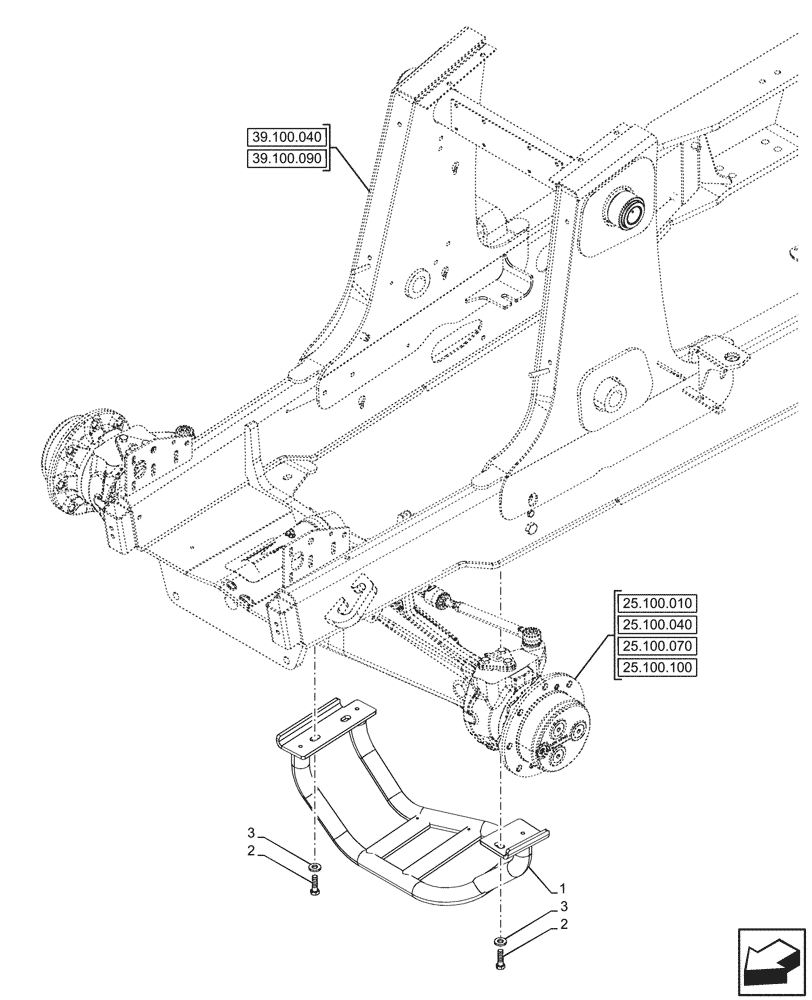

Схема запчастей Case 580N - (23.314.080) - VAR - 745136 - FRONT, DRIVE SHAFT, GUARD, 4WD (23) - FOUR WHEEL DRIVE SYSTEM
39.100.090
3
3
2
2
1
25.100.010
25.100.070
25.100.040
39.100.040
25.100.100
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47604689

GUARD

Driveshaft

1шт.

2

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

3шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

3шт.
