(21.700.010) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, TORQUE CONVERTER, 2WD

Запчасти Case 580N (21.700.010) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, TORQUE CONVERTER, 2WD (21) - TRANSMISSION

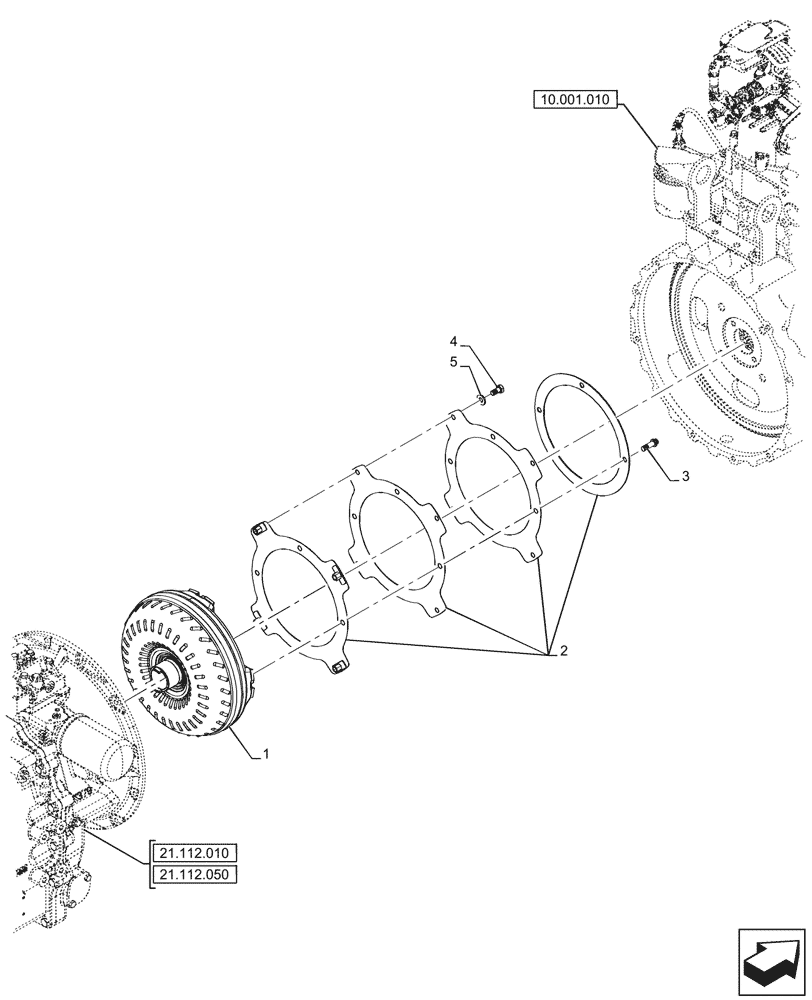

Схема запчастей Case 580N - (21.700.010) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, TORQUE CONVERTER, 2WD (21) - TRANSMISSION
21.112.050
4
2
1
5
3
10.001.010
21.112.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702194

TORQUE CONVERTER

1шт.

2

47442982

KIT

Flex Plate W/ M10X1.5 Nuts

1шт.

3

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

5

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.
