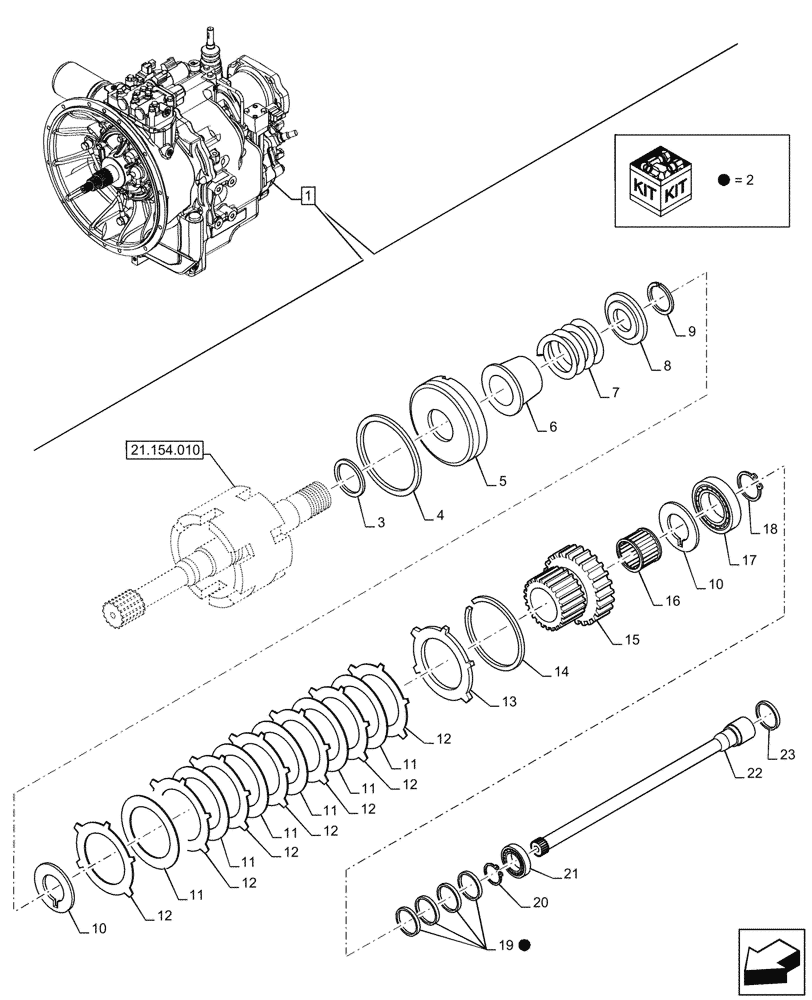

Запчасти Case 580N (21.154.020) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, PTO, INPUT SHAFT, 2WD (21) - TRANSMISSION

1

87395300

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.104.020, 21.112.030, 21.112.070, 21.134.020, 21.134.030, 21.154.010, 21.154.030, 21.154.040, 21.154.050, 21.154.060, 33.110.010, 55.031.010, 55.031.020

1шт.

2

87525849

REPAIR KIT

ASSY, Shaft, Incl 19

1шт.

See also Repair Kit Components in Figure 21.154.010

1шт.

3

358642A1

SEALING RING

1шт.

4

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

1шт.

5

358644A1

PISTON

Clutch

1шт.

6

358641A1

TRANSMISSION SLEEVE

1шт.

7

358637A1

SPRING

Piston, Return

1шт.

8

181161A1

PLATE, THRUST

1шт.

9

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

1шт.

10

358640A1

WASHER

2шт.

11

181158A1

CLUTCH DISC

6шт.

12

181159A1

DISC

7шт.

13

310519A1

PLATE

1шт.

14

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

1шт.

15

358638A1

PINION,39T

Forward

1шт.

16

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

1шт.

17

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

18

800-1150

SNAP RING,M50, Ext

1шт.

19

87429984

RING

4шт.

20

800-1130

SNAP RING,M30, Ext

1шт.

21

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

22

87705460

PTO SHAFT

Powershuttle Transmission

1шт.

23

358645A1

SEALING RING

1шт.
