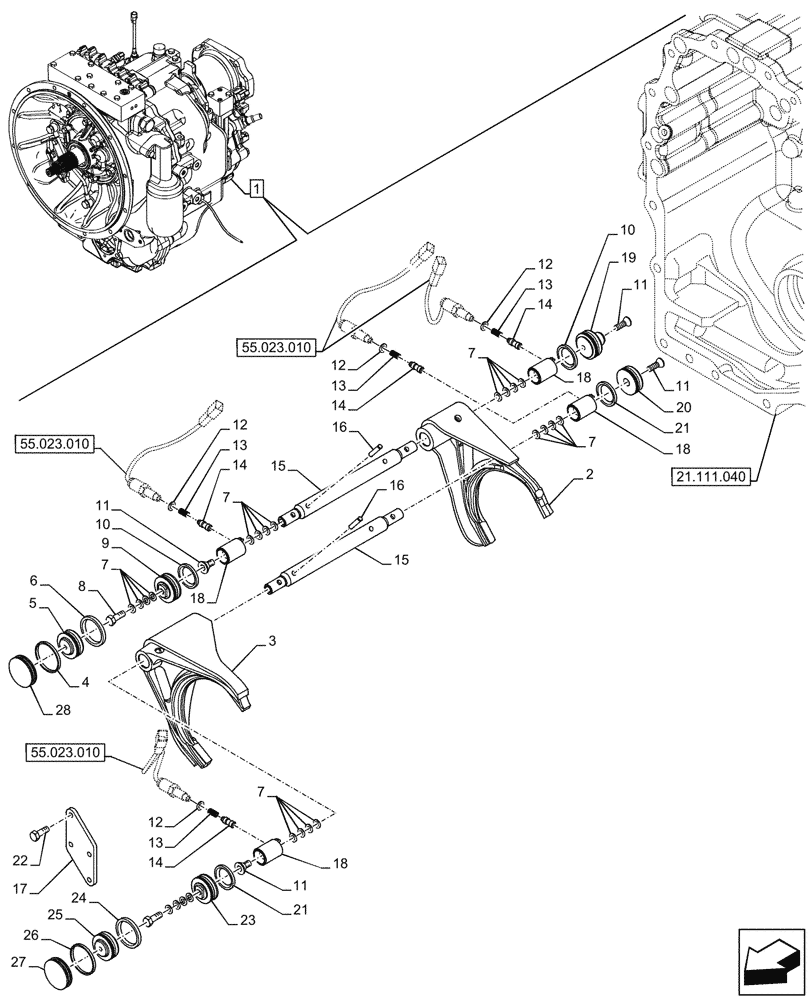

Запчасти Case 580N (21.152.050) - VAR - 423060 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, TRANSMISSION CONTROL, FORK, 2WD (21) - TRANSMISSION

1

84327511

TRANSMISSION

ASSY, Semi-Powershift, Incl 2 - 28

1шт.

See also Transmission Components in Figures 21.103.020, 21.111.030, 21.111.040, 21.152.010, 21.152.020, 21.152.030, 21.152.040, 33.110.030, 55.020.010, 55.021.010, 55.022.040, 55.023.010, 55.024.050, 55.024.080, 55.031.050, 55.031.060

1шт.

2

84367052

SHIFTER FORK

3rd and 4th Speed

1шт.

3

84367043

SHIFTER FORK

1st and 2nd Speed

1шт.

4

238-5130

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.

5

84367033

PISTON

Neutral

1шт.

6

84367034

SEAL

Neutral Piston

1шт.

7

84367035

SHIM,0.1mm Thk

1шт.

7

84367036

SHIM,0.3mm Thk

1шт.

7

84367037

SHIM,0.5mm Thk

1шт.

7

84367038

SHIM,1mm Thk

1шт.

8

84367039

SCREW

2шт.

9

84367040

PISTON

3rd Speed

1шт.

10

84367041

SEAL

3rd and 4th Piston

2шт.

11

84367049

SCREW,Hwh, M10-16, 3/4"

4шт.

12

87578908

O-RING,0.103" Thk x 0.237" ID, -108, Cl 6, 90 Duro

4шт.

13

84367048

SPRING

4шт.

14

84367047

PIN

4шт.

15

84367044

SHIFT RAIL

Semi-Powershift Transmission

2шт.

16

84367045

PIN

2шт.

17

84367031

PLATE

1шт.

18

84367042

BUSHING

4шт.

19

84367046

PISTON

4th Gear, Standard

1шт.

19

47360435

PISTON

4th Gear, Alternative Part

1шт.

Same Usage/Application. To be Ordered when P/N 84367046 is not Available

1шт.

20

84367051

PISTON

2nd Gear, Standard

1шт.

20

47360436

PISTON

2nd Speed, Alternative Part

1шт.

Same Usage/Application. To be Ordered when P/N 84367051 is not Available

1шт.

21

84367053

SEAL

2шт.

22

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

23

84367058

PISTON

4th Speed

1шт.

24

84367057

SEAL

Semi-Powershift Transmission

1шт.

25

84367056

PISTON

Neutral

1шт.

26

374545

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

1шт.

27

84367054

PLUG

1шт.

28

84367032

PLUG

1шт.
