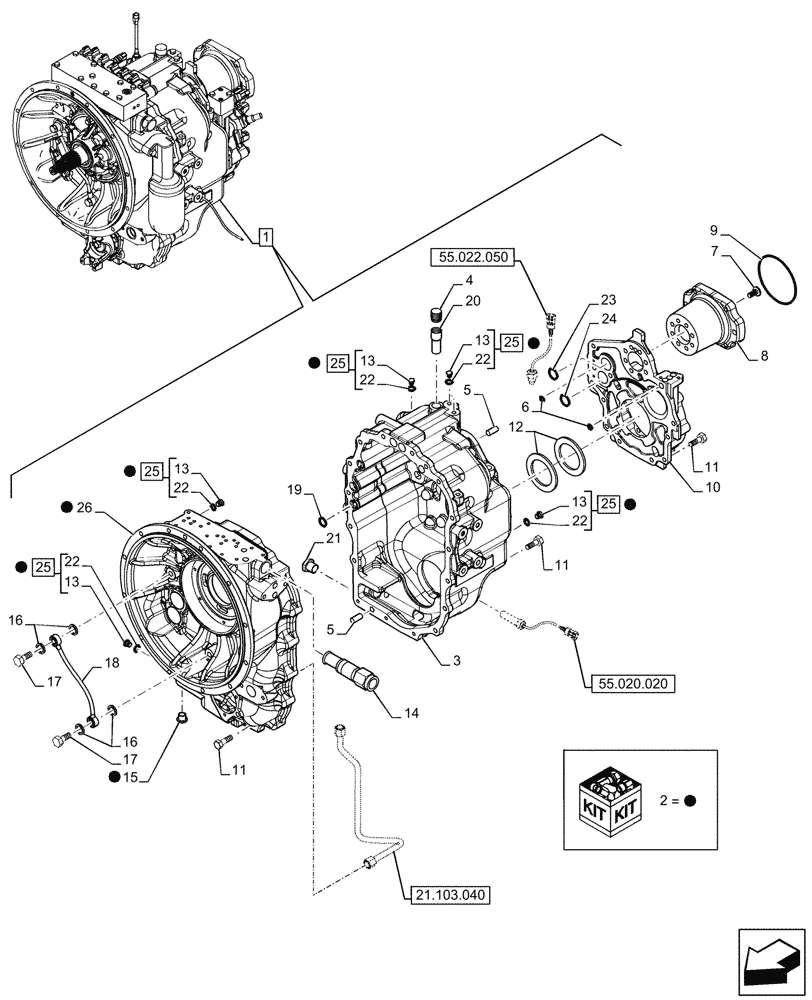

Запчасти Case 580N (21.111.080) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, HOUSING, 4WD (21) - TRANSMISSION

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2 - 26

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.070, 21.152.060, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.024.100, 55.031.070, 55.031.080

1шт.

2

84336853

HOUSING

ASSY, Front, Incl 26

1шт.

3

84336854

HOUSING

Rear

1шт.

4

1530028C1

BREATHER

1шт.

5

K260177

PIN

3шт.

6

5194294

RUBBER RING

3шт.

7

87701258

BOLT,M10 x 1.5 x 45mm L

10шт.

8

87701269

FLANGE

1шт.

9

175156

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

10

84336855

COVER

Rear

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

20шт.

12

84336858

SHIM,0.1mm Thk

1шт.

12

84336860

SHIM,0.3mm Thk

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 25

7шт.

14

84336881

VALVE, PRESSURE CONT

Semi-Powershift Transmission

1шт.

15

239606A1

PLUG

1шт.

16

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

4шт.

17

181179A1

BANJO BOLT

2шт.

18

181232A1

TUBE

1шт.

19

181141A1

O-RING,17.12mm ID x 2.62mm Width

6шт.

20

310772A1

VENTILATION PIPE,18 mm OD, 42 mm Length

Oil Breather

1шт.

21

100557A1

PLUG, DRAIN,M30 x 2

1шт.

22

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

23

272219

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.

24

9820460

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

25

9625178

PLUG,9/16" - 18 ORB

ASSY, Incl 13, 22

7шт.

26

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.
