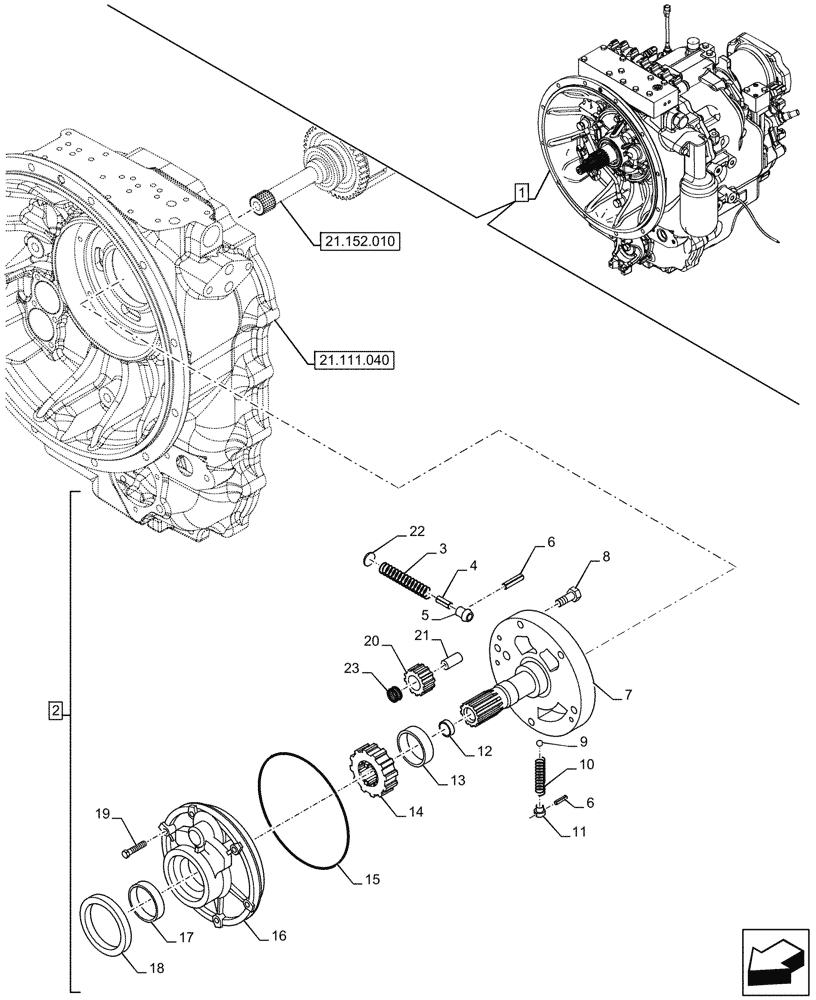

Запчасти Case 580N (21.111.070) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENTS, OIL PUMP, 4WD (21) - TRANSMISSION

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2 - 23

1шт.

See also Transmission Components in Figures 21.103.030, 21.103.040, 21.111.080, 21.152.060, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.024.100, 55.031.070, 55.031.080

1шт.

2

87705431

HYDRAULIC PUMP

ASSY, Semi-Powershift, Pump Assembly, Incl 3 - 23

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Cotter Pin, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Ball, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

1шт.

15

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Incl in 2

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

1шт.

18

87429971

OIL SEAL

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

9шт.

20

NSS

NOT SOLD SEPARAT

Gear, Incl in 2

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

22

NSS

NOT SOLD SEPARAT

Washer, Incl in 2

1шт.

23

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.
