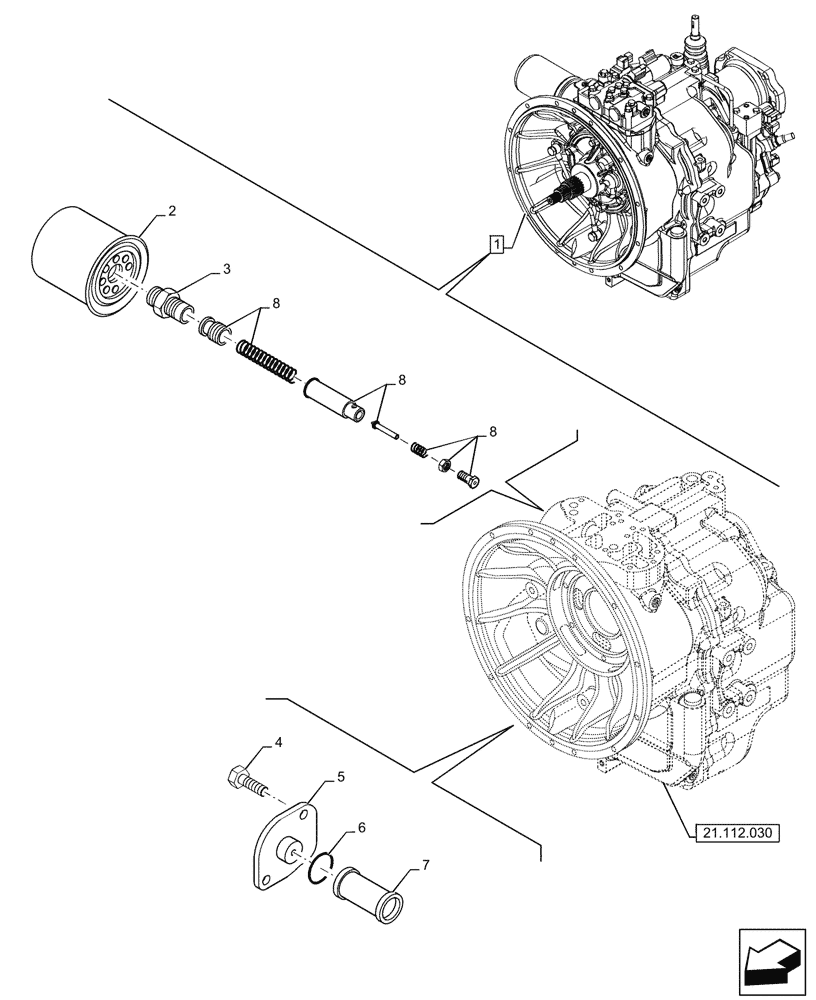

Запчасти Case 580N (21.104.020) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, COMPONENTS, OIL FILTER, 2WD (21) - TRANSMISSION

1

87395300

TRANSMISSION

ASSY, TLB 1 Up with SAHR, Incl 2 - 8

1шт.

See also Transmission Components in Figures 21.112.030, 21.112.070, 21.134.020, 21.134.030, 21.154.010, 21.154.020, 21.154.030, 21.154.040, 21.154.050, 21.154.060, 33.110.010, 55.031.010, 55.031.020

1шт.

2

254686A2

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Transmission Oil

1шт.

3

181202A1

FITTING

1шт.

4

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

5

84301332

COVER

Filter

1шт.

6

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

7

278534A1

FILTER SCREEN

Suction Oil

1шт.

8

84127891

KIT

Hydraulic Valve, Transmission

1шт.
