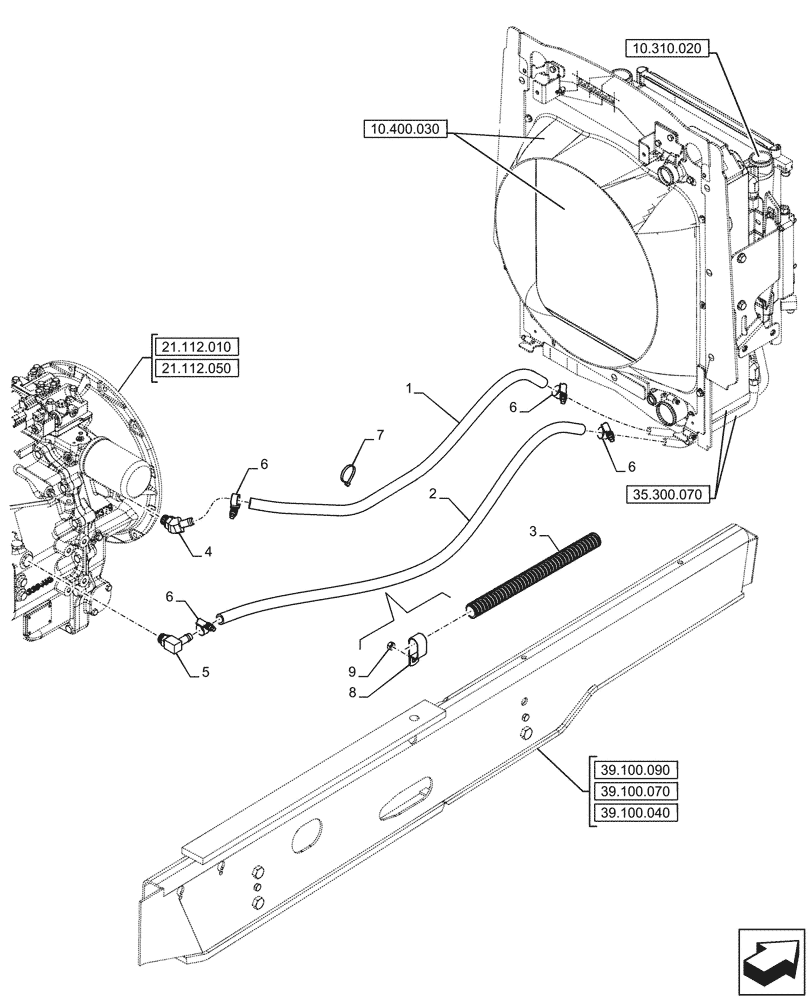

Запчасти Case 580N (21.104.010) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, OIL COOLER, LINE, 2WD (21) - TRANSMISSION

1

87422597

HOSE,15.88mm ID x 975mm L, SAE 100R6

Transmission Cooler Fill

1шт.

2

87422598

HOSE,15.88mm ID x 1225mm L, SAE 100R6

Transmission Cooler Return

1шт.

3

D134399

LOOM

1шт.

4

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

1шт.

5

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

1шт.

6

328186A1

HOSE CLAMP,400mm L

4шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

8

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
