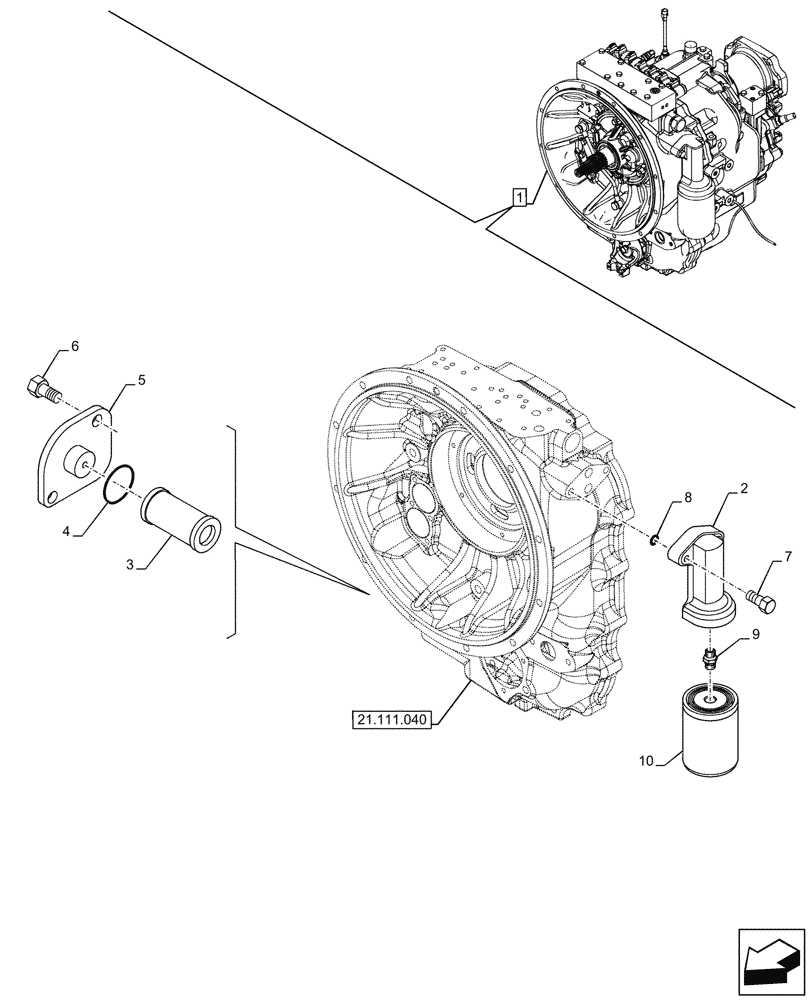

Запчасти Case 580N (21.103.030) - VAR - 423061 - TRANSMISSION, SEMI-POWERSHIFT, COMPONENT, OIL FILTER, 4WD (21) - TRANSMISSION

1

84327512

TRANSMISSION

ASSY, Semi-powershift, 4WD, Incl 2 - 10

1шт.

See also Transmission Components in Figures 21.103.040, 21.111.070, 21.111.080, 21.152.060, 21.152.070, 21.152.080, 21.152.090, 21.152.100, 21.152.110, 33.110.040, 55.020.020, 55.021.020, 55.022.050, 55.023.020, 55.024.060, 55.024.100, 55.031.070, 55.031.080

1шт.

2

84336851

FILTER HEAD

Support

1шт.

3

278534A1

FILTER SCREEN

Suction Oil

1шт.

4

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

5

84301332

COVER

Filter Screen

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

7

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

8

181141A1

O-RING,17.12mm ID x 2.62mm Width

2шт.

9

181202A1

FITTING

1шт.

10

254686A2

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Semi-Powershift Transmission

1шт.
